Loader Backhoes

RIGHT FOR YOUR NEEDS

Loader Backhoes

RIGHT FOR YOUR NEEDS

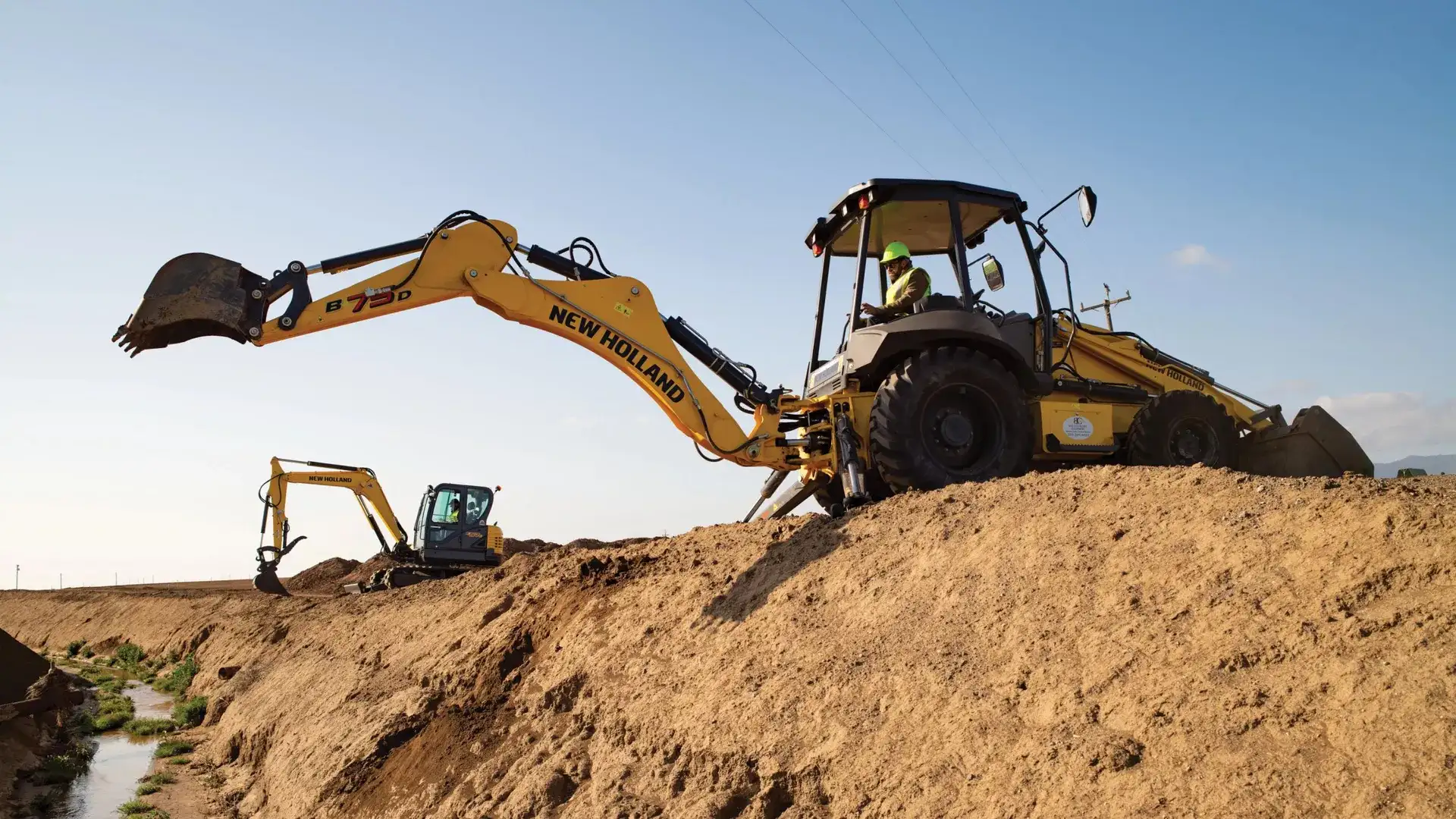

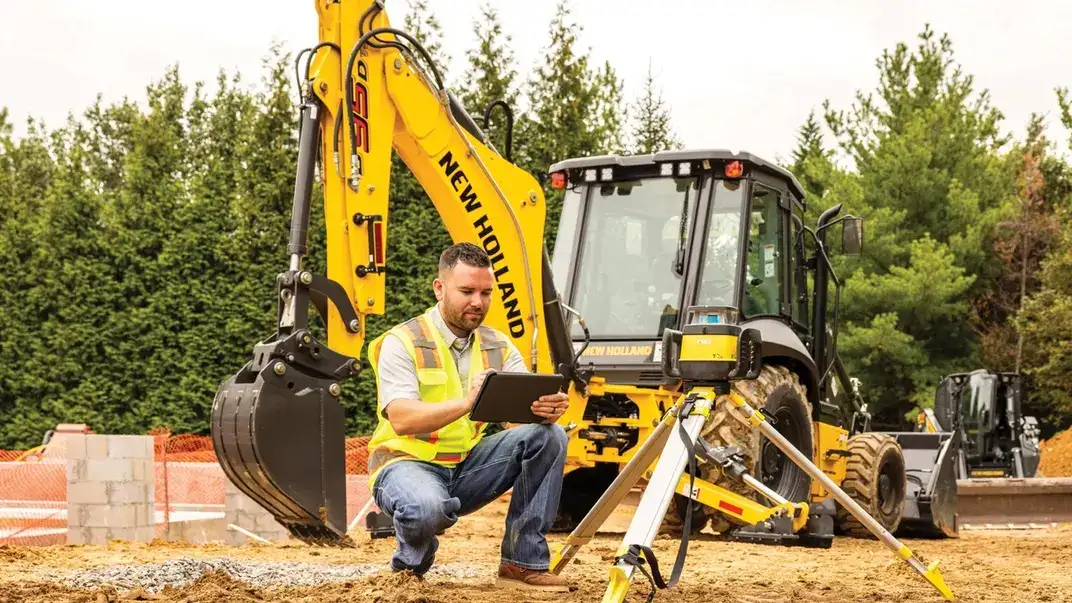

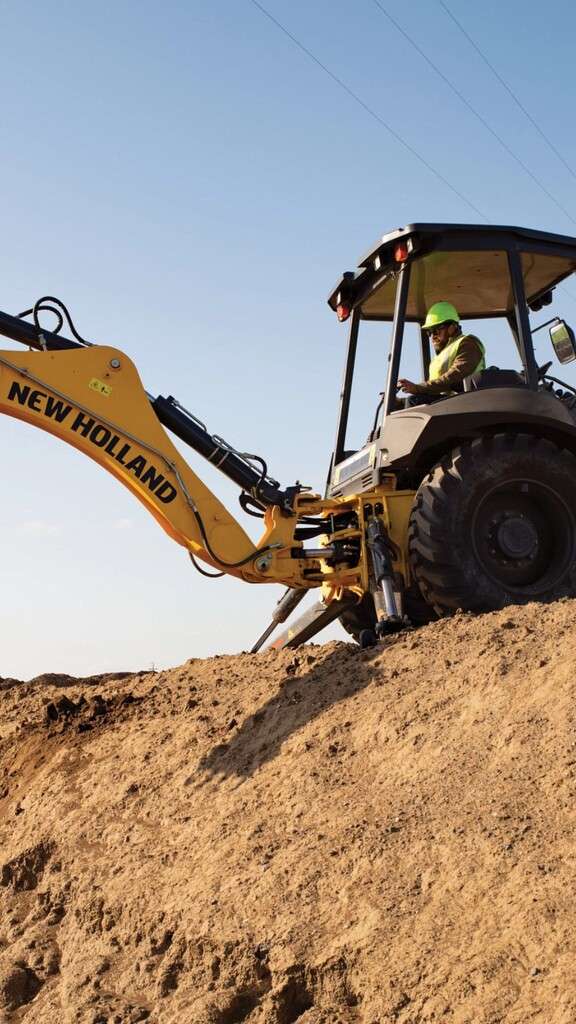

D Series loader backhoes represent a huge step forward in operator comfort and productivity while delivering Tier 4 Final emission compliance without compromise. A new cab design features 10% more space and new rear side windows. Experience vastly improved clearance when turning the seat for backhoe operation. Do more than move bulk material - use your D Series machine for grading and leveling as well as grabbing heavy items like tree trunks and concrete pillars.

With a 4-in-1 bucket, a D Series loader backhoe delivers exceptional performance with just a single attachment. Choose a 6-in-1 bucket to flip down adjustable pallet forks for handling palletized loads without a dedicated vehicle. The backhoe can be equipped with a wide choice of buckets to match excavation, water-course clearance, trenching and other demands. You can also fit post-hole diggers, hydraulically extendable dippers and countless other tools. The long, nearly 23 ft (7 m) reach of both the standard and telescopic dipper allow for digging depth comparable to many conventional dedicated excavators. There are no performance compromises with a New Holland D Series loader backhoe.

Features

  • WELCOME ABOARD

    The class-leading D Series cab is now wider, so you can easily turn the seat when transitioning from front loader work to the backhoe. New rear side windows allow better visibility and less obstruction. A redesign of the right-side console improves ergonomics and control layout, regardless of what direction you are working in. Storage capacity has been significantly increased with the addition of two lockable compartments, two bottle holders, and four open trays. Two USB ports to charge devices, Bluetooth® radio and a mobile phone holder increase operator convenience. In-cab noise levels have been reduced by 3 dB(A). A high-grip floor covering comes standard to help prevent the operator from slipping when entering the cab. A powerful lighting package features up to ten optional LED lights, and provides a true 360-degree light pattern thanks to the roof-mounted side lights. Large retractable sun visors, cup holders, glove box and a deluxe pneumatic heated seat are included. And to top it off, the engine exhaust is located on the right side of the cab to provide a clear view of the loader arm.

  • ENGINE AND CHASSIS

    Developing 74 to 110 HP depending on the model, the new FPT Industrial F5 3.4-liter, four-cylinder engine is the same unit proven in New Holland T5 tractors. Compliant with stringent Tier 4 Final emission regulations, the engines have an advanced throttle control system that allows the operator to adjust how the engine responds to throttle inputs from smooth to fast. New D Series models also feature three, new fuel-saving modes to increase economy and reduce wear and tear on the machine.

  • POWERSHIFT™ OR POWERSHUTTLE

    D Series loader backhoes come with switchable two- or four-wheel-drive, a powershuttle forward and reverse mechanical transmission, or the automatic PowerShift™ transmission. All PowerShift™ models now feature a convenient F-N-R switch on the front loader multifunction lever.

  • HYDRAULICS TO MEET EVERY DEMAND

    To precisely match customer needs, D Series loader backhoes are offered with a choice of hydraulic pump designs. In addition, an auxiliary hydraulic circuit is available to power attachments such as hydraulic breakers and soil augers. Two types of pumps are available: twin gear and variable displacement.


    Twin Gear Pump (Mechanical Controls)

    • Simple
    • Constant flow
    • Fast warm-up
    • Straightforward service and maintenance
    • Ideal for applications with limited roading and other general uses
    • Maximum flow 39.8 GPM (150.7 LPM) @ 2200 RPM
    • Maximum operating pressure 2,973 PSI (205 bar)

    Variable Displacement Pump (Pilot Controls)

    • Only active when there is a demand for oil
    • Flow rate proportional to demand
    • Reduces fuel consumption
    • Reduced oil temperature due to flow on demand
    • Ideal for intensive backhoe operation and frequent roading
    • Variable flow from 1.5 to 41.2 GPM (5.7 to 156 LPM)
    • Maximum operating pressure 2,973 PSI (205 bar)
  • SPEND TIME SAVING MONEY

    Routine care is the key to equipment performance and longevity. The D Series loader backhoe is designed for fast, easy routine service checks and features a long 500-hour engine and 1,000-hour transmission service intervals to reduce downtime. Easy access is provided to all key fuel, engine, transmission and hydraulic filters and all engine servicing can now be performed from one side for added convenience.
