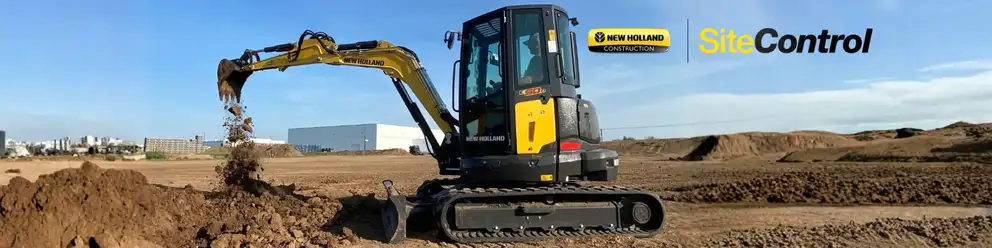

SiteControl
A Smart Step into Machine Control
The New Holland Construction SiteControl 2D guidance by Hemisphere® is an accessible and cost-effective entry point into machine control technology. Once implemented, these 2D systems quickly deliver a return on investment and significant operational improvements.
The Fundamentals of 2D Machine Control
For many operations, 2D systems deliver a substantial step forward in productivity and accuracy without the complexity or cost of 3D technology. These can include:
- Placing building pads
- Digging foundations and footers
- Digging ditches and basements
- Creating slopes
- Placing utilities
Beyond Manual Grade Checking
A 2D machine control system streamlines the excavation process, allowing operators to work continuously with accurate, in-cab information. It transforms the excavator into its own grade rod, eliminating the need for a dedicated grade checker at the excavation site. This allows every crew member to be assigned to schedule-critical tasks, increasing overall jobsite productivity.
2D Makes a Difference on the Jobsite
Learn more about how 2D machine control can be used for basement excavation, ditch excavation and blind cuts.

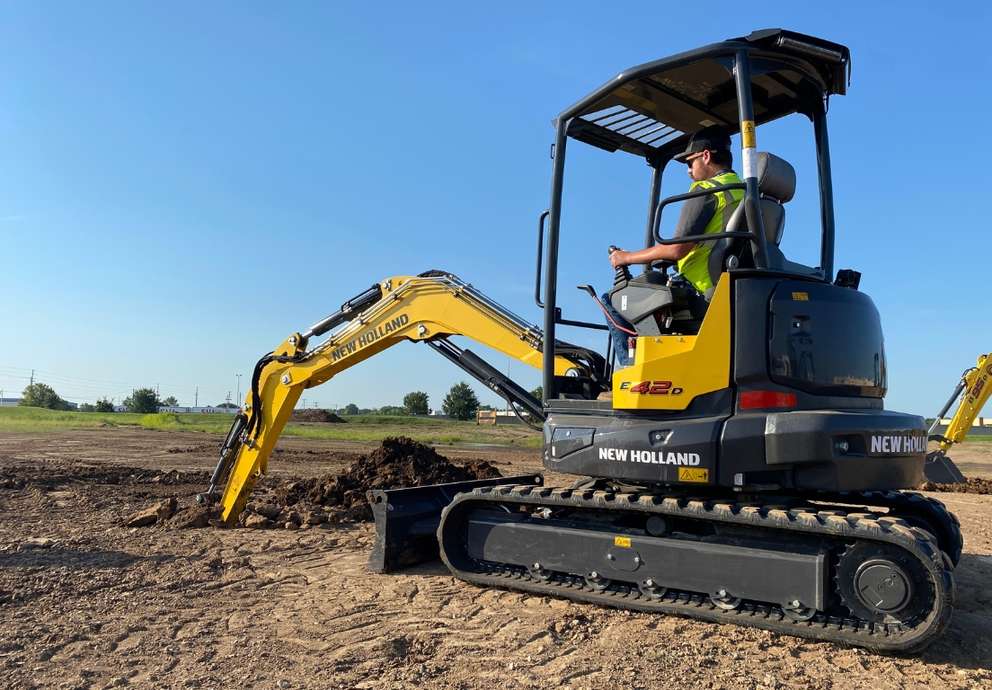

Basement Excavation
Dig to a specific depth, creating a level floor in a lower elevation.
MANUAL
- Requires a laser setup to provide a reference elevation and an additional crew member to perform grade checks during excavation. The operator must exit the cab every 15 to 30 minutes to check grade. The job might also require the extra expense of a surveyor.
2D
- Depth and slope are continuously displayed in the cab. The operator excavates to grade without interruptions or additional personnel, and the chances of over or under digging are significantly decreased.

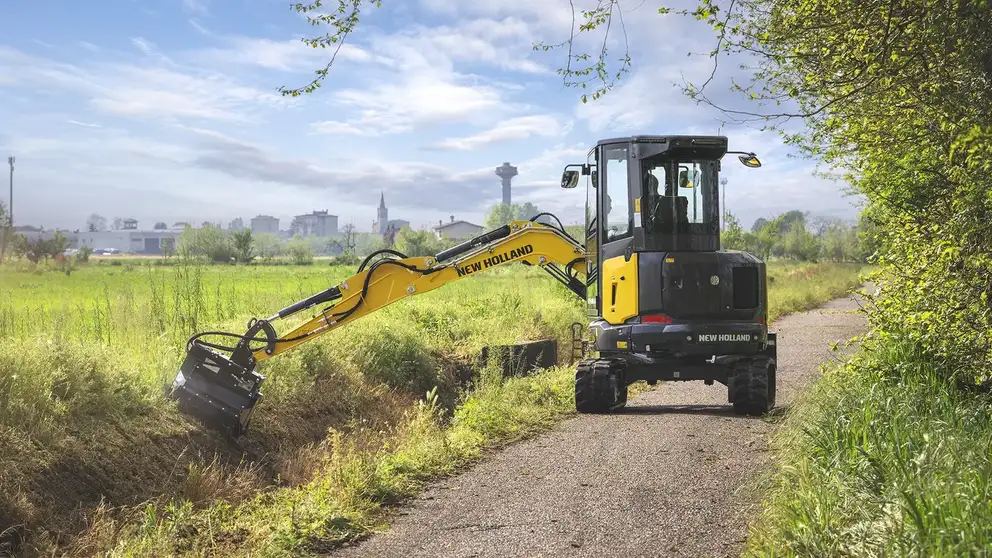

Ditch Excavation
Dig a ditch with a level floor for utility placement.
MANUAL
- Requires two people, one in the machine and one holding the grade rod in the trench, increasing labor costs and safety risks.
2D
- The system benchmarks against ground level, survey stake or laser. The operator then sets cut depth on the in-cab monitor and excavates until the system notifies that depth has been reached. The operator then backs up, benchmarks against the new surface and repeats the process for the entire length of the trench. This allows other personnel to focus on setting pipe while increasing excavation accuracy.

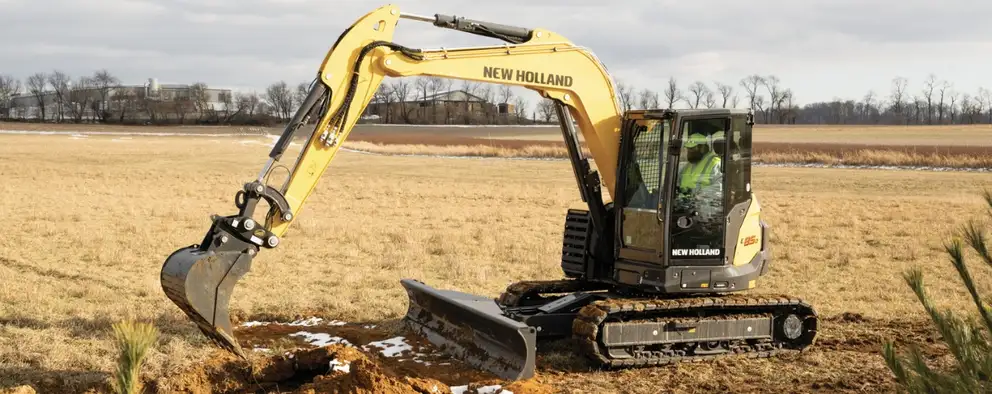

Blind Cuts
Dig and grade from a position where the bucket cannot be seen from the cab.
MANUAL
- Requires two people communicating by radio or hand signals, increasing safety risks because the operator can’t see the bucket
2D
- Working from a laser reference or a benchmark, the operator continuously checks grade without requiring a second person.
Move Beyond Manual Grade Checks with 2D Machine Control
A 2D machine control delivers clear advantages over manual grade checks in both accuracy and efficiency.
Higher Productivity
Maximizes project uptime by reducing interruptions and enabling faster, more accurate daily progress.
