U80D

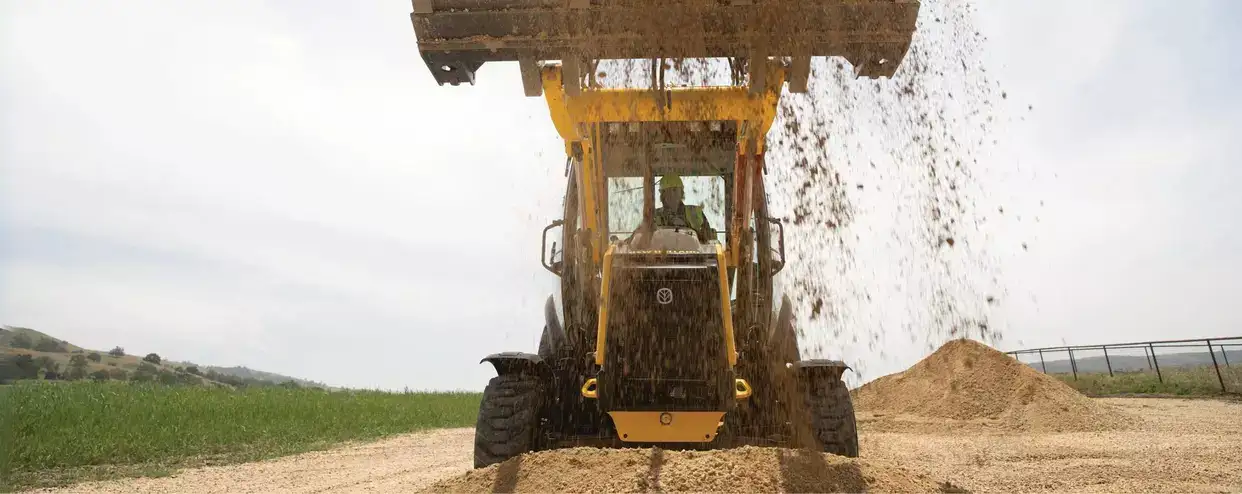

New Holland tractor loader U80D brings a sense of ease to completing job site tasks. Leverage 6,503 lbs (2950 kg) of lift capacity to full height using a long lip bucket and 6,537 lbs (2965 kg) using a 4-in-1 bucket. From the lowest point in hitch position, the machine yields 2,500 lbs (11,121 N) of lift capacity and 2,984 lbs (13,274 N) at the highest point.

The fully integrated loader control lever allows the operator to manage all loader and front auxiliary functions comfortably in one location.

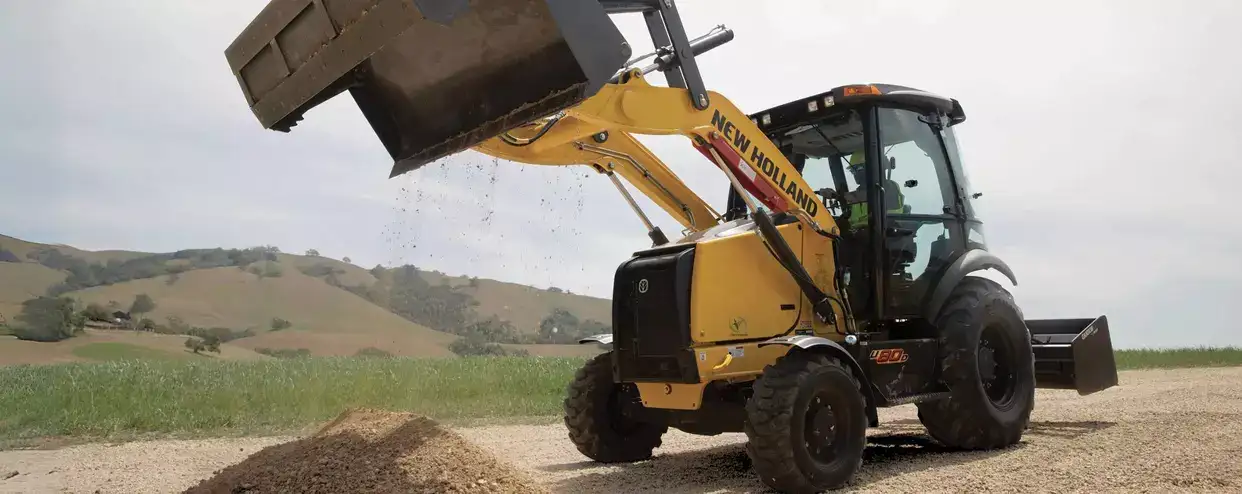

​​​​​​​​​​The U80D tractor loader has the precision, such as hydraulic bucket leveling, to perfectly place loads and greatly reduce spillback. Efficient truck loading also comes from the excellent 2 ft 2 in (0.66 m) of reach at maximum dump height with both the long lip and 4-in-1 bucket. The unique reverse-mounted loader arm cylinders produce a 4-in-1 bucket breakout force of up to 10,325 lbs (45928 N) that accompanies its superior dump speeds.

When you add the Glide Ride option, a flip of a switch turns the boom cylinders into the equivalent of giant shock absorbers to stabilize the load while traveling.

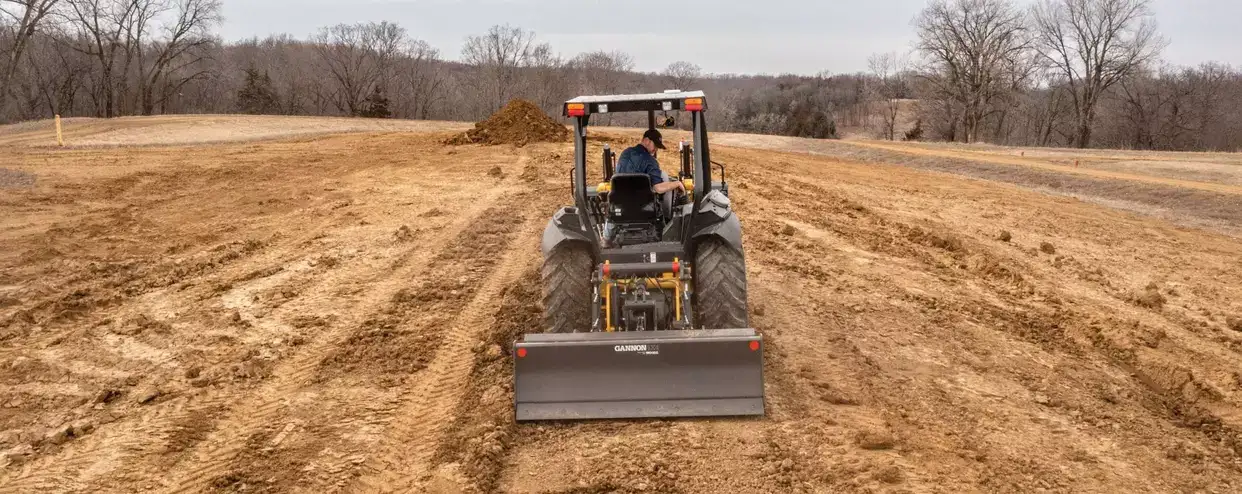

The rugged Class II three-point hitch with controllable down pressure yields a maximum lift force of 3,501 lbs (15574 N) for superior scraping and leveling performance. For added versatility, consider a 540-rpm Power Take Off (PTO) to run PTO-driven attachments. PTO ready forward and reverse travel speeds range from 3.5 mph (5.6 km/h) in first, up to 21.3 mph (34.3 km/h) in fourth.

​​​The synchromesh transmission with power shuttle gives you smooth control and easy forward-reverse shuttling, resulting in polished direction changes between the four forward and four reverse gears.

The high-powered 4-speed syncromesh transmission also has hydraulically actuated clutches and clutch disconnect buttons on the transmission shifter and loader control lever. For even more traction, there is an on-the-go push button for differential-lock activation.

Base equipment on the U80D features elements that supplement performance capabilities, such as integral engine oil cooling, a fuel filter with water trap and hydrostatic steering. Plus, operators will have ample storage in the cab and peace of mind while working thanks to the safety instruments like warning lights and audible alarms, to name a few.

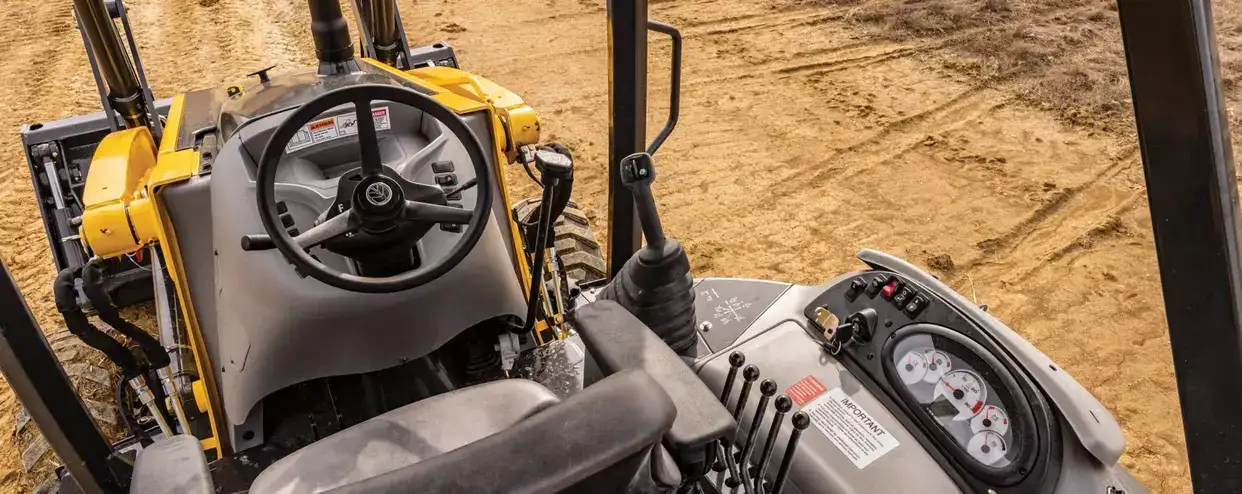

The large, flat-deck operator platform provides easy-to-use controls and unobstructed views for outstanding visibility.​
