L328

Meet your challenges head-on with 300 Series skid steer loaders from New Holland. The L328 is designed to make your workday more productive and comfortable with noteworthy dump height and reach, swift cycle times, and time-saving travel speeds.

Gross HP
74 HP (55 kW)
Operating Weight
7,895 lbs (3580 kg)
ROC @ 50% Tip
2,800 lbs (1270 kg)
Lift Type
Vertical Lift

Features

  • POWERFUL PERFORMANCE, FAST CYCLE TIMES, SMOOTH OPERATION

    New Holland Tier 4 Final engines use less fuel while still delivering powerful 74 HP (55 kW) performance to the L328. The reliable hydraulic system delivers fast cycle times, raising in just 4.5 seconds and lowering in only 2.6 seconds. In-line hydraulic pumps produce less noise and provide extra-smooth operation. Add the optional Ride Control and Self Level to make those long work days easier and more productive.

  • SAVE TIME BETWEEN JOBSITES

    The dual-range transmission on the L328 provides standard low-range travel speeds of up to 7.0 mph (11.3 kph) and 232 lbs/ft (314 Nm) @1800 rpm of peak torque power to save time on and between job sites. New Holland’s long 52-inch (1322 mm) wheelbase gives you stability and smooth riding comfort. Newly available creep mode on EH models provides greater control for slow-speed operations like trenching.

  • SUPERIOR SUPER BOOM® DUMP HEIGHT AND REACH

    Patented Super Boom® vertical lift linkage on the L328 provides a maximum 100-inches (2541 mm) of dump height and a maximum 31.9-inches (810 mm) in dump height reach, allowing you to precisely place loads in the center of high-sided truck boxes or hoppers.

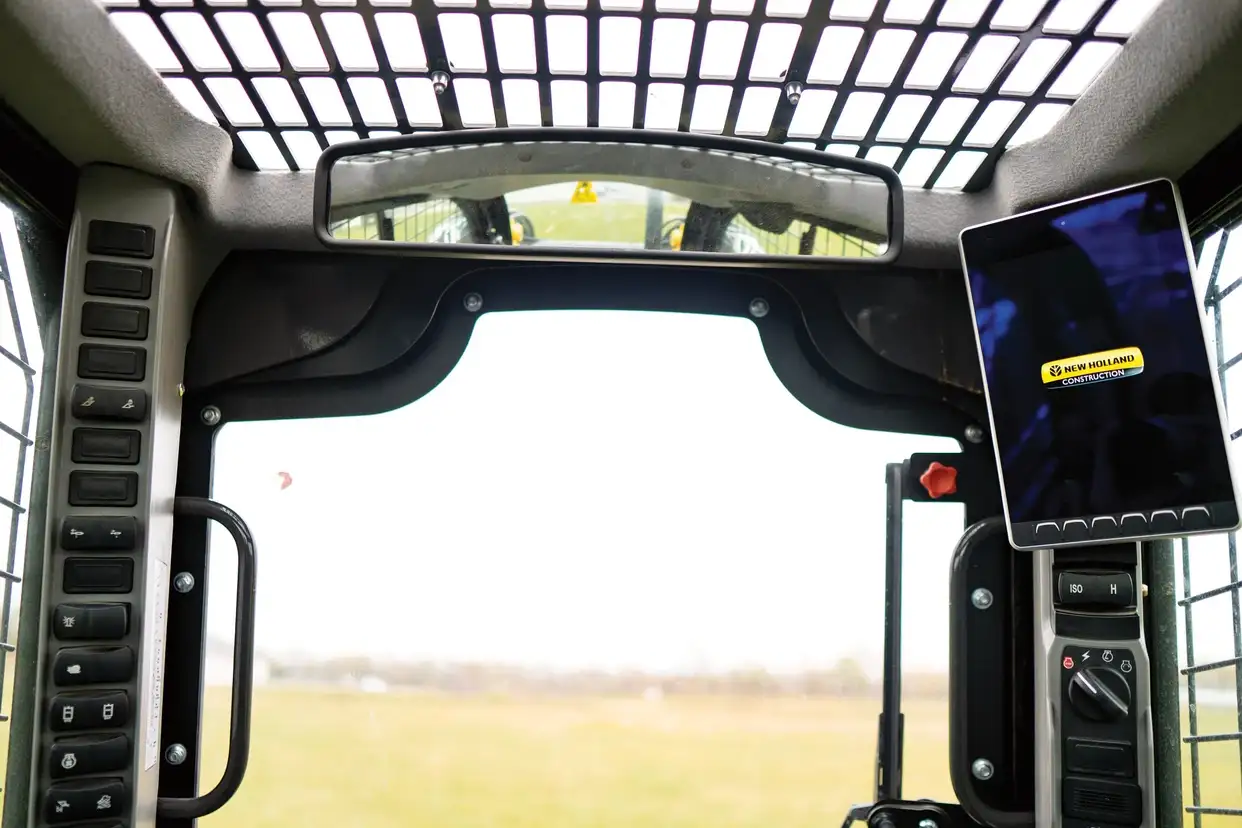

  • 8” LCD MULTIFUNCTION DISPLAY MAKES OPERATION EASIER

    The LCD display with an integrated back-up camera helps you operate a 300 Series loader with greater ease and confidence. At 8 inches in size and mounted conveniently on the right forward post, the LCD display puts all the information and tools for greater productivity right where you need it. The display provides key operation data, including engine and performance information, RPM, fuel level, battery voltage, hydraulic oil temperature, engine temperature, and trip screen. The integrated backup camera increases visibility to the rear of the loader, improving operator efficiency and safety. You can set the camera for “always on” or to engage only when shifting the loader into reverse gear.

  • OPERATOR COMFORT AND VISIBILITY THAT’S SECOND TO NONE

    The 300 Series cab is one of the widest in the industry, with more headroom and shoulder room to accommodate any operator. Visibility remains best in the business, with an unobstructed view to the back and a clear sightline to the loader bucket through the huge glass door. A see-through area on the cab roof provides the operator a clear view of the bucket at full height.

  • EASY ACCESS, SIMPLIFIED SERVICE

    Long service intervals and easy access to maintenance points reduce downtime and lost revenue. All daily service points are grouped together and the rear door and hood make it easy to access without tools. The entire cab and boom assembly tilts forward for unrivaled entry to components and easy cab cleanout.

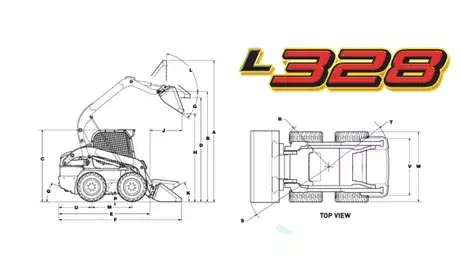

Compare Specifications

Overall operating height

Overall operating height with foundry/excavating bucket short lip (in. (mm))
Overall operating height with low profile/standard lip bucket (in. (mm))
Overall operating height with low profile extended/long lip bucket (in. (mm))

Height to

Overall length

Dump

Maximum attachment rollback

Wheelbase and clearance

Clearance circle

Engine

Engine speeds

Horsepower per SAE J1349

Drive pump mechanical

Drive pump electro hydraulic

Drive motors

Travel speed with spec tires

Drive chain

Axles

Parking brake

Pumps

Loader control valve

Lift cylinder

Bucket cylinders

Weights

Service Capacities

Hydraulic system

Rated operating load

Breakout forces

Cycle times

Downloads

View documents for additional product details and specifications.

Skid Steer & Compact Track Loaders - Brochure

Skid Steer & Compact Track Loaders - Brochure

7.24MB
