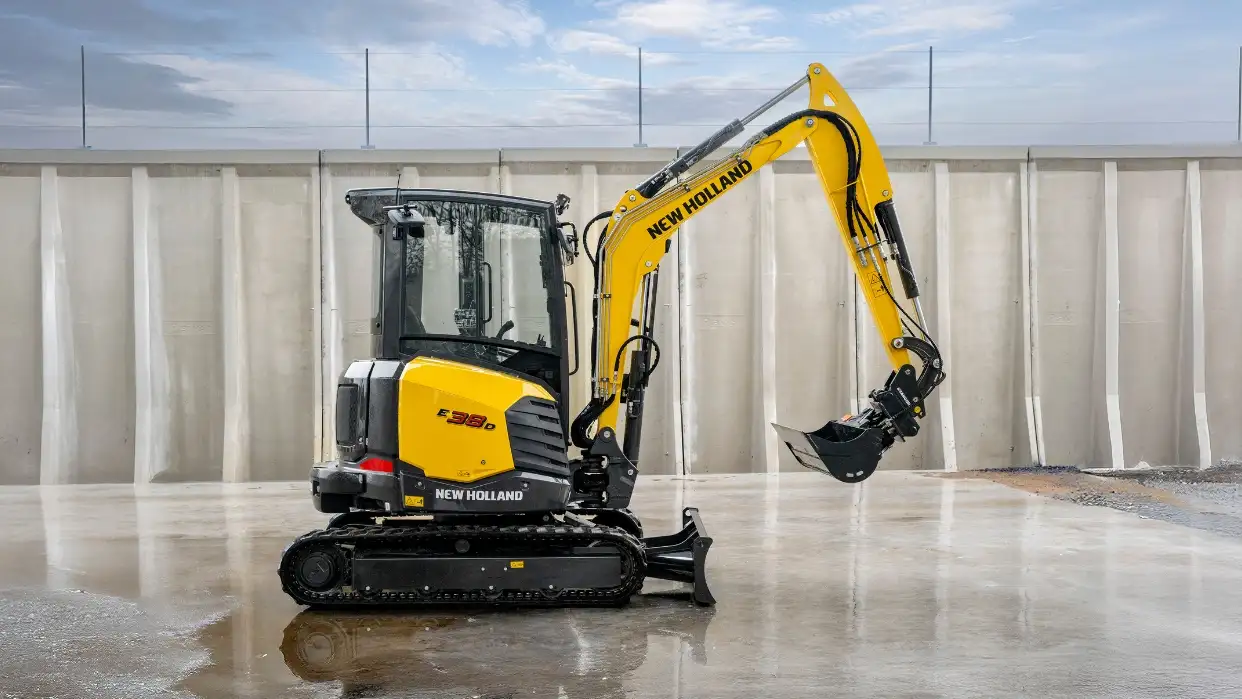

E38D

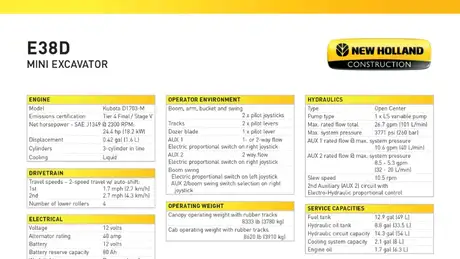

The E38D is powered by a 24.4 hp (18.2 kW) Stage V-certified Kubota D1703-M engine, known for durability and low emissions. This power is housed in a compact and easily transportable package, measuring 8 ft 3 in (2520 mm) in height and 16 ft 1 in (4900 mm) in overall transport length.

Specify your D Series compact excavator with the arm length to best suit your requirements. Length on the E38D standard digging arm measures up to 4 ft 7 in (1.40 m) and 5 ft 5 in (1.65 m) with the long arm.

The standard arm yields 10 ft 1 in (3070 mm) of maximum digging depth and gets a maximum 10 ft 11 in (3320 mm) below surface with the long arm. With all this muscle, plus 3552 lbf (15.8 kN) of standard arm digging force, the E38D will quickly become your partner in productivity.

The standard arm on the E38D provides a maximum 10 ft 7 in (3230 mm) of dump height and 6812 lbf (30.3 kN) in bucket breakout force. If your operation requires a greater dump height, opt for the optional long arm that gets up to 11 ft 1 in (3380 mm) in maximum dump height.

Powering demanding attachments is a key New Holland advantage.With the right attachment, New Holland's excavators can be used for a diverse range of jobs from fence installation to concrete breaking.The E38D arrives ready to run a wide array of attachments like hydraulic hammers, compaction plates, grapples and mulchers. Models are available with factory-installed couplers, buckets and thumbs.

The E38D is available with a ROPS/FOPS canopy or a fully enclosed cab. Both configurations are packed with comfort and safety features. In the cab, operators will find a fabric mechanical seats, height-adjustable armrests, manual or automatic climate control; plus, six directional vents and intuitive joystick-mounted controls that move with the seat for smoother, more precise operation over uneven terrain.

Additional cab features include a sliding right-side window, overhead-opening front window, radio and speakers, rearview mirrors, front wiper/washer, USB and 12V charging ports and bottle holder. See real-time feedback on coolant and hydraulic oil temperatures, fuel levels, engine RPM, machine hours. Safety-focused details include a control cut-out lever, manual/auto idle settings, RPM hand dial, a 2-inch seat belt, emergency exit hammer and keyed locks common to the ignition.

For contractors and operators, serviceability is a key component to weigh when considering mini excavators. The E38D includes a tipping cab/canopy for full engine access, as well as three large side and rear panels that offer fast access to key service points. Just two bolts need to be removed to tip the cab.
