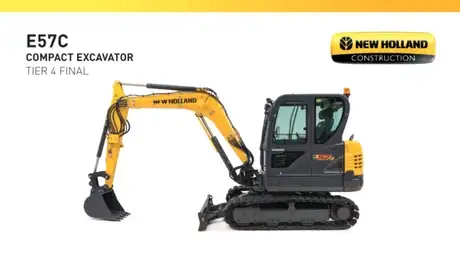

New Holland's E57C compact dimensions and digging capabilities combine power and versatility to seize every moment of your work day. Designed for day-long performance, this mini excavator has class-leading excavation talent with the adaptability to support a wide range of attachments.

Gross HP
66.9 HP (49.8 kW)
Operating Weight - Cab/Canopy
12,050 lbs (5465 kg) / -
Max Digging Depth - Std/Long Arm
12 ft 6 in (3820 mm) / 13 ft 4 in (4060 mm)
Max Dump Height- Std/Long Arm
13 ft 3 in (4050 mm) / 13 ft 9 in (4180 mm)



    The​​​ 66.9 HP (49.9 kW) engine provides plenty of power to the load-sensing hydraulics for a smooth and efficient operation in this compact and easily transportable package, measuring 8 ft 4 in (2550 mm) in height and 19 ft 4 in (5900 mm) in overall transport length.

    Slim frame posts ensure excellent all-round visibility, with good views of the boom and dipper. When working in a confined area, in urban areas, or between valuable crops such as in a vineyard, nursery or an orchard, you can operate a New Holland compact excavator with absolute precision for minimal disruption.


    Specify your C Series compact excavator with the arm length to best suit your requirements. Length on the E57C standard digging arm measures up to 5 ft 3 in (1.6 m) and 6 ft 3 in (1.9 m) with the long arm.

    The standard arm yields 12 ft 6 in (3820 mm) of maximum digging depth and gets a maximum 13 ft 4 in (4060 mm) below surface with the long arm. With all this muscle, plus 7190 lbf (31.98 kN) of standard arm digging force, the E57C will quickly become your partner in productivity.


    The standard arm on the E57C provides a maximum 13 ft 3 in (4050 mm) of dump height and 9550 lbf (42.48 kN) in bucket breakout force. If your operation requires a greater dump height, opt for the optional long arm that gets up to 13 ft 9 in (4180 mm) in maximum dump height.

    In addition, the available Object Handling Kit allows you to raise heavy, suspended loads using a lifting hook on the bucket linkage.


    The E57C has a left swing angle of 75 degrees and a right swing angle of 50 degrees. A larger left swing angle improves visibility to the side of the door for a more precise operation. Ample boom swing angles allow for efficient parallel digging, good for working alongside obstacles. Plus, forgoing the need to reposition the machine means you can complete the job faster.

    Boom pivot pins are secured by plate and bolt to reduce lateral movement and provide reliable performance in tough conditions. Plus, the pins give way to a long service life and lower whole-life operating costs.


    New Holland mini-excavators are compliant with Tier 4 Final emission regulations and employ different after-treatment technologies to achieve this. Each model has a power unit selected to match the excavator's size and capacity. This ensures optimized performance and fuel economy. To further enhance economy, the E57C is fitted with Auto-idle.

    When the hydraulics or traction motors are not demanding oil, the engine speed is reduced to idle with no input required from the operator. This feature can be turned on or off via a simple switch on the main console. Auto-idle works to reduce wear, fuel consumption and engine noise.


    Powering demanding attachments is a key New Holland advantage. With the right attachment, New Holland's excavators can be used for a diverse range of jobs from fence installation to concrete breaking. Job site versatility is bound to soar with the added advantage of high constant hydraulic flow and quick coupler.

    The Hydraulic Quick Coupler allows for hands-free coupling and release of buckets. Plus, safely swap between large, heavy attachments. Mechanical quick lock attachment brackets are also available.


    New Holland's E57C compact excavator is fitted with a cab and carries a 12,050 lb (5465 kg) operating weight with a full fuel tank, operator and bucket. Additionally, the E57C is TOPS (tip-over), FOPS (falling-object) and ROPS (roll-over) compliant to protect the precious cargo inside. Low noise and vibration levels, an adjustable suspension seat, adaptable wrist rests and Bluetooth® radio ensure you can work for extended periods in comfort with no compromise in operator safety.

    Standard digital color LCD monitor provides easy battery management and access to machine settings. The 5.7 in (14.5 cm) touchscreen helps to keep your operation in motion when key machine details are easily accessible - such as engine speed, coolant and hydraulic oil temperature and maintenance information including fault codes and diagnostics. Further improve productivity and reduce downtime with simplified daily checks when all key check and service points are grouped together.

    Plus, every New Holland Compact Excavator will come with New Holland Fleetforce™ Telematics advanced data subscription.


View documents for additional product details and specifications.

E57C Mini Excavator Specifications

E57C Mini Excavator Specifications
