F50C

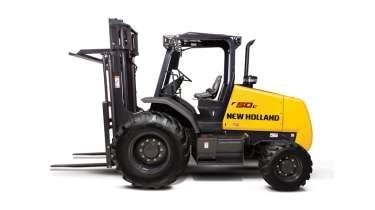

Discover for yourself how the New Holland's F50C lives up to its reputation. Even on bumpy landscapes, this rough terrain forklift maintains best-in-class operator comfort while swiftly loading materials to alleviate long working days. Its high-performance lifting capacity, engine performance and exceptional visibility on both masts are sure to increase your productivity. Plus, get more time back in your day with the simple and cost-effective Tier 4 Final Solution engine.

Gross HP
68 HP (51 kW)
Operating Weight
12,885 lbs (5845 kg)
Overall Operating Height
225 in (5.7 m)
Lift Capacity
5,000 lbs (2268 kg)

Features

  • GETS THE JOB DONE ON ANY TERRAIN

    Standard 4-wheel drive and a power shuttle synchromesh transmission with four forward and four reverse gears put you in control of nearly any terrain. The push-button activation differential lock, over 10 inches (260 mm) of ground clearance and an 84.5-inch (2.15 m) wheelbase all work together to tackle job site tasks. The F50C provides 144 inches (3.7 m) of fork height and 3 inches (76 mm) of mast side shift on either side for operators for optimal operator visibility.

  • COMPACT AND MIGHTY

    The F50C has an overall length of just over 16 feet (4.93 m) and the overall height to top of mast measures 110 inches (2.8 m). This machine is compact enough to maneuver around the entire worksite while continuously delivering the powerful 74 HP (55 kW) and 233 lb-ft (316 N•m) of maximum torque performance capabilities.

  • DO MORE WITH LESS

    ​A straightforward, cost-effective Tier 4 Final solution, the 3.4-liter FPT engine on the F50C features a Diesel Oxidation Catalyst (DOC) for increased fuel efficiency and faster response times. Forgoing the need to add fluids or and without diesel particulate filters to replace brings simplified maintenance and more hours back in your day.

Compare Specifications

ENGINE

Model
Emissions Certification
Cylinders
Displacement (in³ (L))
Displacement in³ (L)
Engine Speed Rated - full load (rpm)
Horsepower @ 2200 RPM Gross hp (kW)
Horsepower @ 2200 RPM Net (hp (kW))

DRIVETRAIN

HYDRAULICS

PERFORMANCE SPECIFICATIONS

DIMENSIONS

Downloads

View documents for additional product details and specifications.
