300 Series compact track loaders are reliable workhorses that deliver high performance in all conditions. Model C327 builds on the strength, visibility, power and smooth ride you’ve come to expect from New Holland CTLs with the addition of key enhancements that improve durability, operating ease and overall productivity.
POWER THROUGH TOUGH JOBS
The reliable hydraulic system of the C327 delivers fast cycle times, raising in just 3.6 seconds and lowering in only 1.8 seconds, in addition to producing less noise and providing extra-smooth operation due to in-line hydraulic pumps. New Holland Tier 4 Final engines deliver powerful performance, use less fuel, are easy to maintain - decreasing operating costs - and still deliver powerful 74 HP (55 kW) performance to the C327.
SMOOTH RIDE, EXTENDED LIFE
The low-profile track undercarriage of the C327 that provides 8 inches (203 mm) of ground clearance makes cleanout a breeze, reduces noise and increases durability. The loader also yields a smoother ride with 55.9 inches (1419 mm) of track on ground, thanks to steel-embedded tracks rolling on the rubber instead of steel. Fewer moving parts than competitive designs mean less complexity and complications, all adding up to longer track life.
LIFT AND CARRY OPERATIONS
The radial lift linkage delivers up to 22.3 inches (568 mm) of dump height reach and a maximum dump height of 98 inches (2488 mm) to precisely place loads in the center of high-sided truck boxes or hoppers. With a full rated operating load of 5,400 lbs (2449 kg), 2,700 lbs (1225 kg) at 50% tip and 1,890 lbs (860 kg) at 30% tip, the C327 is optimized for lift-and-carry operations, allowing operators to load material with precision and confidence.
8” LCD MULTIFUNCTION DISPLAY MAKES OPERATION EASIER
The LCD display with an integrated back-up camera helps you operate a 300 Series loader with greater ease and confidence. At 8 inches in size and mounted conveniently on the right forward post, the LCD display puts all the information and tools for greater productivity right where you need it. The display provides key operation data, including engine and performance information, RPM, fuel level, battery voltage, hydraulic oil temperature, engine temperature, and trip screen. The integrated backup camera increases visibility to the rear of the loader, improving operator efficiency and safety. You can set the camera for “always on” or to engage only when shifting the loader into reverse gear.
WIDE, COMFORTABLE CAB WITH SUPERIOR VISIBILITY
New Holland 300 Series loaders make comfort a priority to boost productivity on the job. More comfort starts with the cab itself, one of the widest in the industry, so it's easy to enter and exit. Full-covering trim absorbs noise, and the visibility panel on the cab roof gives you a clear view in all directions, even to the raised bucket or attachments. The fully sealed and pressurized cab minimizes dust and exhaust infiltration. Seat choices include the optional suspension seat or the heated, composite air-ride seat for maximum support and ultimate comfort. An optional, factory-installed lap bar is offered on all 300 Series models. All loader models also feature an optional 8-inch LCD display with integrated rear camera, Bluetooth radio (satellite-radio ready) and a USB port.
EASY ACCESS, SIMPLIFIED SERVICE
Hassle-free access on 300 Series compact track loaders makes daily service and maintenance that much easier. The rear door and hood provide straightforward service access for periodic maintenance and daily checkpoints. Access engine oil, fuel fill, hydraulic oil, coolant and radiator points without tools, and clean the radiator from either side. If ever needed, the entire cab can be tilted forward for unrivaled access to components and easy cab cleanout.

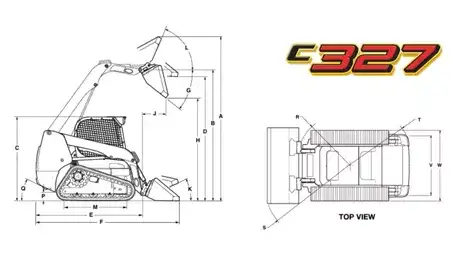

Overall operating height
Overall operating height with foundry/excavating bucket short lip (in. (mm))
Overall operating height with low profile/standard lip bucket (in. (mm))
Overall operating height with low profile extended/long lip bucket (in. (mm))
Maximum attachment rollback
Track and clearance
Horsepower per SAE J1349
Drive pump electro hydraulic
Loader control valve
Rated operating load
View documents for additional product details and specifications.
