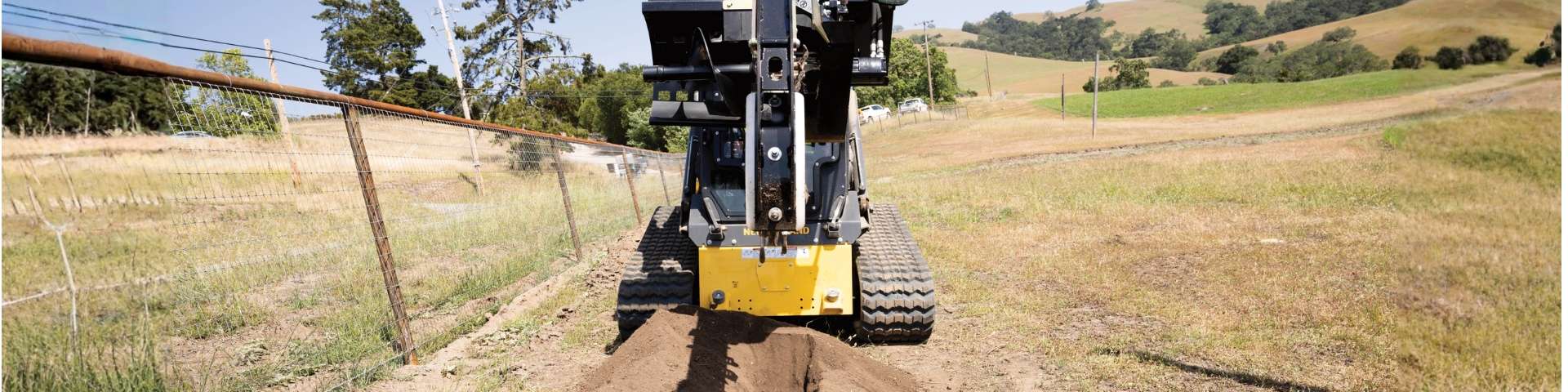

Trenching

Delivers fast, precise trenching with a direct-drive design, and plug-and-play installation for maximum jobsite productivity.

FIND A DEALER

Available Models

Find the right attachment to meet the needs of your operation.

Backhoe (for Loader) | BHS1080

BHS1080 SSL BH 9
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
TRANSPORT HEIGHT (FULLY RETRACTED): 93"
TRANSPORT WIDTH (STABILIZERS UP): 45"
TRANSPORT LENGTH: 81"
SHIPPING WEIGHT: 1,400 lb
GROUND CLEARANCE: 9.5"
DIGGING DEPTH (2 FT. FLAT BOTTOM): 108"
OVERALL OPERATING HEIGHT (FULLY RAISED): 128"
LOADING HEIGHT (BUCKET AT 60°): 89"
REACH FROM SWING POST: 145"
BUCKET ROTATION: 180°
SWING ARC: 180°
STABILIZER WIDTH (SPREAD POSITION): 90"
STABILIZER WIDTH (TRANSPORT): 41"
STABILIZER (BELOW GRADE): 12"
OPERATING PRESSURE: 2,250 psi
DIPPER STICK DIGGING FORCE SAE: 3,560 lb
BUCKET DIGGING FORCE SAE: 4,055 lb
BOOM LIFT CAPACITY: 795 lb
HYDRAULIC VOLUME REQUIREMENTS: 5–7 gpm

Backhoe (for Loader) | SKDGR

SKDGR SSL SKIDDIGGER
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
OPERATING WEIGHT (NO BUCKET): 375 lb
MAX DIGGING DEPTH: 72"
PRESSURE: 3,000 psi
BUCKET DIGGING FORCE (SAE) @ 3,000 psi: 5,400 lb-f

Trencher | TR36B

TR36B SAL TREN_38_CB
EQUIPMENT: SMALL ARTICULATED LOADER
WEIGHT: 610 lb
CHAIN: CUP/BULLET
TRENCHING DEPTH AT 60°: 38"
TRENCHING WIDTH: 6"
PRESSURE RATING: 2,000–3,000 psi
FLOW: 7–17 gpm
SHAFT SPEED: 85–185 RPM
SPOIL AUGER DIAMETER: 14"
SPOIL AUGER LENGTH: 18.5"

Trencher | TR36B

TR36B SSL TREN_36_CB
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
BOOM SIZE: 36"
TRENCH DEPTH W/AUGER 65° DIGGING ANGLE: 36"
TRENCHER WIDTHS AVAILABLE: 6", 8", 10", 12"
RECOMMENDED TRENCHING ANGLE: 65°
HEADSHAFT HEIGHT: 8"
OVERALL TRENCHER LENGTH: 73"
OVERALL TRENCHER WIDTH: 53"
OVERALL TRENCHER HEIGHT: 32"
SPOIL DISCHARGE REACH: 18"
SIDE SHIFT, RIGHT OF CENTER: 17"
DISTANCE FROM CENTERLINE DRIVE SPROCKET TO BACK OF
MOUNTING FRAME: 16"
FLOW: 14–22 gpm
OPERATING PRESSURE: 2,000–3,000 psi
APPROXIMATE OVERALL SHIPPING WEIGHT: 1,041 lb

Trencher | TR36BM

TR36BM CII TREN_38_CB
EQUIPMENT: MINI TRACK LOADER
WEIGHT: 550 lb
CHAIN: CUP/BULLET
TRENCHING DEPTH AT 60°: 38"
TRENCHING WIDTH: 6"
PRESSURE RATING: 2000–3000 psi
FLOW: 7–17 gpm
SHAFT SPEED: 85–185 RPM
SPOIL AUGER DIAMETER: 14"
SPOIL AUGER LENGTH: 18.5"

Trencher | TR36C

TR36C SAL TREN_38_C
EQUIPMENT: SMALL ARTICULATED LOADER
WEIGHT: 585 lb
CHAIN: CUP
TRENCHING DEPTH AT 60°: 38"
TRENCHING WIDTH: 6"
PRESSURE RATING: 2,000–3,000 psi
FLOW: 7–17 gpm
SHAFT SPEED: 85–185 RPM
SPOIL AUGER DIAMETER: 14"
SPOIL AUGER LENGTH: 18.5"

Trencher | TR36C

TR36C SSL TREN_36_C
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
BOOM SIZE: 36"
TRENCH DEPTH W/AUGER 65° DIGGING ANGLE: 36"
TRENCHER WIDTHS AVAILABLE: 6", 8", 10", 12"
RECOMMENDED TRENCHING ANGLE: 65°
HEADSHAFT HEIGHT: 8"
OVERALL TRENCHER LENGTH: 73"
OVERALL TRENCHER WIDTH: 53"
OVERALL TRENCHER HEIGHT: 32"
SPOIL DISCHARGE REACH: 18"
SIDE SHIFT, RIGHT OF CENTER: 17"
DISTANCE FROM CENTERLINE DRIVE SPROCKET TO BACK OF
MOUNTING FRAME: 16"
FLOW: 14–22 gpm
OPERATING PRESSURE: 2,000–3,000 psi
APPROXIMATE OVERALL SHIPPING WEIGHT: 1,041 lb

Trencher | TR36CM

TR36CM CII TREN_38_C
EQUIPMENT: MINI TRACK LOADER
WEIGHT: 525 lb
CHAIN: CUP
TRENCHING DEPTH AT 60°: 38"
TRENCHING WIDTH: 6"
PRESSURE RATING: 2,000–3,000 psi
FLOW: 7–17 gpm
SHAFT SPEED: 85–185 RPM
SPOIL AUGER DIAMETER: 14"
SPOIL AUGER LENGTH: 18.5"

Trencher | TR36S

TR36S SAL TREN_36_CS
EQUIPMENT: SMALL ARTICULATED LOADER
WEIGHT: 610 lb
CHAIN: CUP/SCORPION
TRENCHING DEPTH AT 60°: 38"
TRENCHING WIDTH: 6"
PRESSURE RATING: 2,000–3,000 psi
FLOW: 7–17 gpm
SHAFT SPEED: 85–185 RPM
SPOIL AUGER DIAMETER: 14"
SPOIL AUGER LENGTH: 18.5"

Trencher | TR36SM

TR36SM CII TREN_36_CS
EQUIPMENT: MINI TRACK LOADER
WEIGHT: 550 lb
CHAIN: CUP/SCORPION
TRENCHING DEPTH AT 60°: 38"
TRENCHING WIDTH: 6"
PRESSURE RATING: 2000–3000 psi
FLOW: 7–17 gpm
SHAFT SPEED: 85–185 RPM
SPOIL AUGER DIAMETER: 14"
SPOIL AUGER LENGTH: 18.5"

Trencher | TR48C

TR48C SSL TREN_48_C
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
BOOM SIZE: 48"
TRENCH DEPTH W/AUGER 65° DIGGING ANGLE: 48"
TRENCHER WIDTHS AVAILABLE: 6", 8"
RECOMMENDED TRENCHING ANGLE: 65°
HEADSHAFT HEIGHT: 8"
OVERALL TRENCHER LENGTH: 86"
OVERALL TRENCHER WIDTH: 53"
OVERALL TRENCHER HEIGHT: 32"
SPOIL DISCHARGE REACH: 18"
SIDE SHIFT, RIGHT OF CENTER: 17"
DISTANCE FROM CENTERLINE DRIVE SPROCKET TO BACK OF MOUNTING FRAME: 16"
FLOW: 14–22 gpm
OPERATING PRESSURE: 2,000–3,000 psi
APPROXIMATE OVERALL SHIPPING WEIGHT: 1,043 lb

Vibratory Plow | VIBPLW

VIBPLW CII VBPLW
EQUIPMENT: MINI TRACK LOADER
HEIGHT: 27.1"
WIDTH: 24.5"
LENGTH: 35.8"
FLOW: 8–14 gpm
OPERATING PRESSURE: 1,500–2,500 psi
WEIGHT: 510 lb
