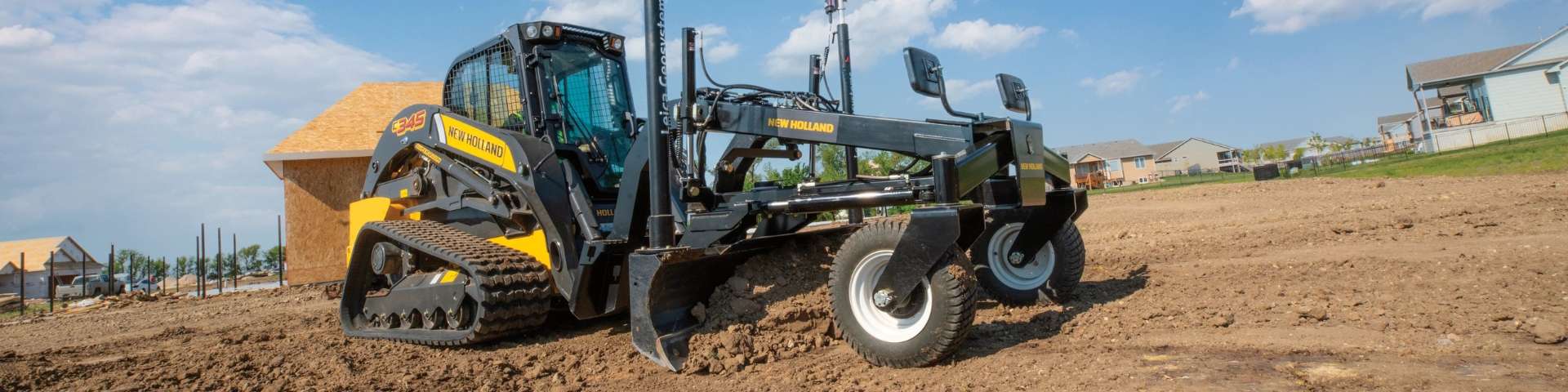

Land Leveling

Versatile attachment designed to grade, level, and prepare surfaces with precision, making it ideal for site preparation.

FIND A DEALER

Available Models

Find the right attachment to meet the needs of your operation.

Box Blade | GBB48

GBB48 CII BOX-BLADE 48
EQUIPMENT: MINI TRACK LOADER
CUTTING WIDTH: 48"
OVERALL WIDTH: 49"
TOTAL LENGTH: 52" (132 cm)
WEIGHT: 580 lb
MIN FLOW: 10 gpm
MAX PRESSURE: 4,060 psi

Box Blade | GBB60

GBB60 CII BOX-BLADE 60
EQUIPMENT: MINI TRACK LOADER
CUTTING WIDTH: 60"
OVERALL WIDTH: 61"
TOTAL LENGTH: 52" (132 cm)
WEIGHT: 640 lb
MIN FLOW: 10 gpm
MAX PRESSURE: 4,060 psi

Box Blade | GBB84

GBB84 SSL BOX-BLADE 84
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
BOX WIDTH: 84"
OVERALL WIDTH: 87.25"
TOTAL LENGTH: 71.25"
BOX CAPACITY, FRONT: 13.4 ft³
BOX CAPACITY, REAR: 8.0 ft³
WEIGHT: 1,935 lb
MINIMAL FLOW RATE: 12 gpm
MAXIMUM FLOW RATE: 28 gpm
MAXIMUM HYDRAULIC PRESSURE: 4,060 psi

Box Blade | GBB96

GBB96 SSL BOX-BLADE 96
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
BOX WIDTH: 96"
OVERALL WIDTH: 99.25"
TOTAL LENGTH: 71.25"
BOX CAPACITY, FRONT: 15.3 ft³
BOX CAPACITY, REAR: 9.0 ft³
WEIGHT: 1,985 lb
MINIMAL FLOW RATE: 12 gpm
MAXIMUM FLOW RATE: 28 gpm
MAXIMUM HYDRAULIC PRESSURE: 4,060 psi

Box Scraper | BSPR84

BSPR84 TLB SCRAPER_84
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER
OVERALL WIDTH: 85.36"
OVERALL HEIGHT: 39.57"
OVERALL LENGTH: 45.50"
MAXIMUM SCARIFYING DEPTH: 6.25"
WEIGHT: 1,440 lb
MAXIMUM HYDRAULIC PRESSURE: 4,000 psi
3–POINT HITCH CATEGORY: CAT. II

Dozer Blade | DB44M

DB44M CII DOZER_6W 44
EQUIPMENT: MINI TRACK LOADER
WEIGHT: 280 lb
WORKING WIDTH: 49.5"
HYDRAULIC ANGLING: ±27°
TILT ANGLE: ±10°
WORKING WIDTH FULLY ANGLED: 44"

Dozer Blade | DB84

DB84 SSL DOZER_6W 84
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
WIDTH: 84"
WIDTH (FULL ANGLE): 74.13"
OPERATING WEIGHT: 1,513 lb
OSCILLATION: 10°
ANGLE: 30°

Dozer Blade | DB96

DB96 SSL DOZER_6W 96
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
WIDTH: 96"
WIDTH (FULL ANGLE): 84.72"
OPERATING WEIGHT: 1,644 lb
OSCILLATION: 10°
ANGLE: 30°

Grader | GR96

GR96 SSL GRADER_9696
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
OPERATING WEIGHT: 2,570 lb
WIDTH: 96"
WIDTH FULLY ANGLED: 87.5"
LENGTH: 99.9"
HEIGHT: 60.0"
BLADE HEIGHT: 16.9"
MAXIMUM BLADE LIFT: 7.3"
MAXIMUM BLADE CUT: 7.7"
HYDRAULIC BLADE SIDE SHIFT (LEFT OR RIGHT): +/-10"
MOLDBOARD ANGLE (LEFT OR RIGHT): +/- 30°

Grader | GR108

GR108 SSL GRADER_108
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
OPERATING WEIGHT: 2,620 lb
WIDTH: 108"
WIDTH FULLY ANGLED: 97.5"
LENGTH: 99.9"
HEIGHT: 60.0"
BLADE HEIGHT: 16.9"
MAXIMUM BLADE LIFT: 7.3
MAXIMUM BLADE CUT: 7.7"
HYDRAULIC BLADE SIDE SHIFT (LEFT OR RIGHT): +/-13"
MOLDBOARD ANGLE (LEFT OR RIGHT): +/- 30°
