Haylage & Silage

Designed to support efficient material handling and feeding operations, these agricultural attachments help operators move, transport, and manage forage materials with greater productivity.

FIND A DEALER

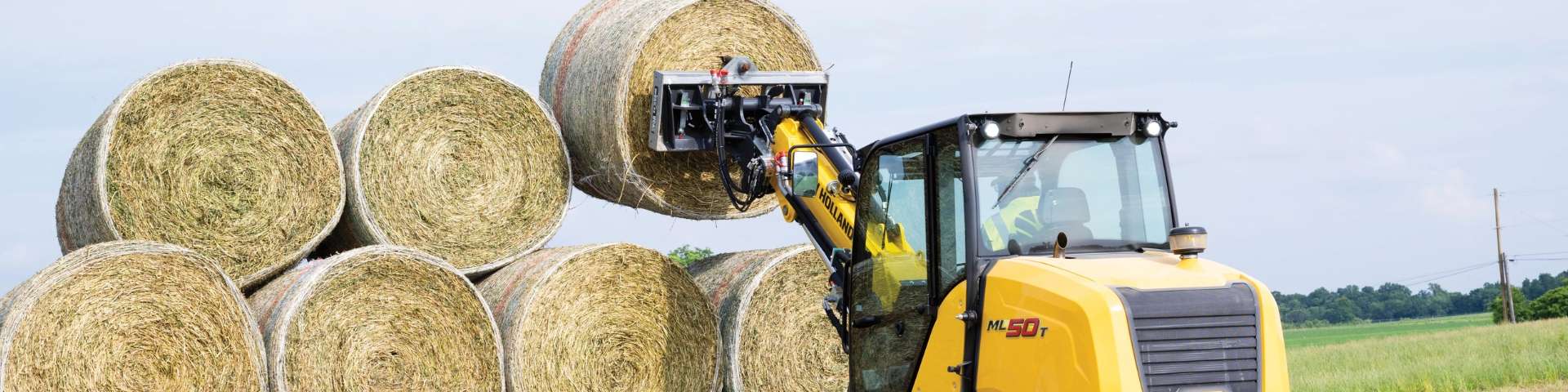

Compact track loader lifting bale of hay.

Available Models

Find the right attachment to meet the needs of your operation.

Bale Grabber | BG10K72

BG10K72 CWL HUGGER_72
EQUIPMENT: COMPACT WHEEL LOADER
WIDTH: 47.5"
HEIGHT: 37.5"
DEPTH: 54"
WEIGHT: 480 lb
MAX PRESSURE: 3,000 psi

Bale Grabber | BG2K71

BG2K71 SSL GRABBER_71
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
LENGTH: 1,370 mm
WIDTH: 1,300 mm
HEIGHT: 800 mm
WEIGHT: 200 kg
WORKING RANGE LEGS EXTENDED: 0.90–1.80 m
MAX LIFT CAPACITY: 1,000 kg
WORKING PRESSURE: 15–23 mpa
TRANSPORT CLEARANCE: 300 mm
TRANSPORT SPEED: 4–8 km/h
MIN HP: 48 hp+

Bale Spear | BS2K39D

BS2K39D SSL SPEAR_39D
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
FRAME WEIGHT: 150 lb
SPEAR COUNT: 2
LIFT CAPACITY: 2,000 lb
SPEAR LENGTH: 39"
SPEAR DIAMETER: 1.75"

Bale Spear | BS2K39S

BS2K39S SSL SPEAR_39S
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
FRAME WEIGHT: 150 lb
SPEAR COUNT: 1
LIFT CAPACITY: 2,000 lb
SPEAR LENGTH: 39"
SPEAR DIAMETER: 1.75"

Bale Spear | BS2K39T

BS2K39T SSL SPEAR_39T
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
FRAME WEIGHT: 150 lb
SPEAR COUNT: 3
LIFT CAPACITY: 2,000 lb
SPEAR LENGTH: 39"
SPEAR DIAMETER: 1.75"

Bale Spear | BS2K49D

BS2K49D SSL SPEAR_49D
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
FRAME WEIGHT: 150 lb
SPEAR COUNT: 2
LIFT CAPACITY: 2,000 lb
SPEAR LENGTH: 49"
SPEAR DIAMETER: 1.75"

Bale Spear | BS2K49S

BS2K49S SSL SPEAR_49S
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
FRAME WEIGHT: 150 lb
SPEAR COUNT: 1
LIFT CAPACITY: 2,000 lb
SPEAR LENGTH: 49"
SPEAR DIAMETER: 1.75"

Bale Spear | BS2K49T

BS2K49T SSL SPEAR_49T
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
FRAME WEIGHT: 150 lb
SPEAR COUNT: 3
LIFT CAPACITY: 2,000 lb
SPEAR LENGTH: 49"
SPEAR DIAMETER: 1.75"

Bale Spear | BS3K53D

BS3K53D CWL SPEAR_53D
EQUIPMENT: COMPACT WHEEL LOADER
BALE WEIGHT: FOR BALES UP TO 3,000 lb
TINE LENGTH: 53"

Bale Spear | BS4K49D

BS4K49D SSL SPEAR_49D
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER, COMPACT WHEEL LOADER
BALE WEIGHT: FOR BALES UP TO 4,000 lb. AT 24" LOAD CENTER
MAIN SPEAR: SINGLE TAPERED, FORGED, 2–1/8" DIA. × 49"
STABILIZER SPIKES: DUAL 1–1/4" DIA. × 19"

Bale Spear | BS4K49DB

BS4K49D TLB SPEAR_49D
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER
BALE WEIGHT: FOR BALES UP TO 4,000 lb
TINE LENGTH: 49"

Silage Defacer | SD9619

SD9619 SSL DEFACER_96
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER, COMPACT WHEEL LOADER
WORKING HEIGHTS: UP TO 19'
CHAIN DRIVE: ENCLOSED #80H CHAIN DRIVE
FULL WIDTH CUT: 96"
