Grapples

The strength of a grapple allows you to pick up a variety of debris, from logs and brush to rocks and concrete.

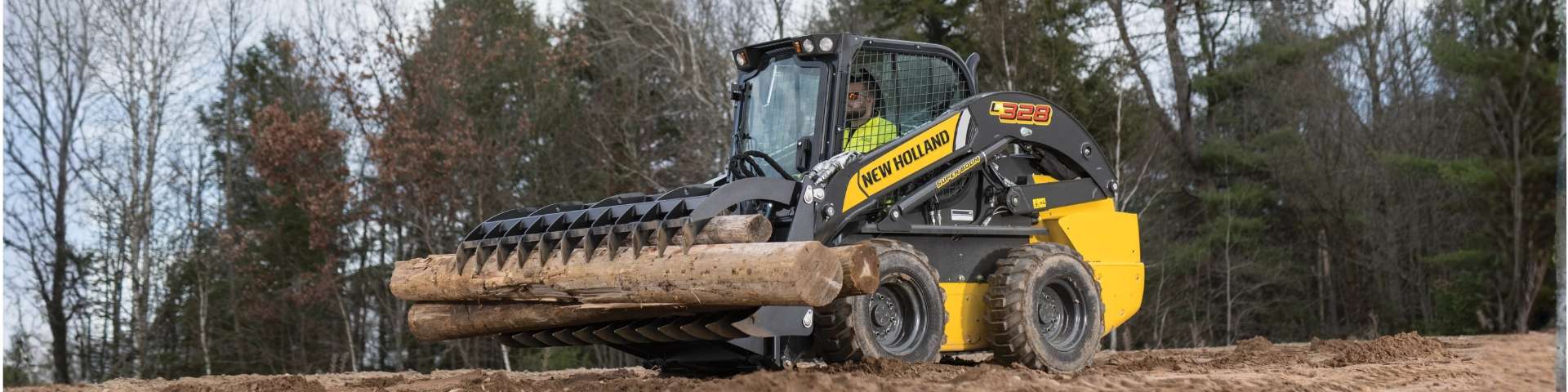

Skid steer loader lifting locks with grapple.

Available Models

Find the right attachment to meet the needs of your operation.

Grapple - Bale | BUGR72

BUGR72 SSL HICAP BKT_72
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER, COMPACT WHEEL LOADER
WEIGHT: 1,125 lb
WIDTH: 72"
HEIGHT (GRAPPLE OPEN): 78.5"
HEIGHT (GRAPPLE CLOSED): 46.25"
MAX OPENING: 75"

Grapple - Bale | BUGR84

BUGR84 SSL HICAP BKT_84
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER, COMPACT WHEEL LOADER
WEIGHT: 1,200 lb
WIDTH: 84"
HEIGHT (GRAPPLE OPEN): 78.5"
HEIGHT (GRAPPLE CLOSED): 46.25"
MAX OPENING: 75"

Grapple - Bale | BUGR96

BUGR96 SSL HICAP BKT_96
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER, COMPACT WHEEL LOADER
WEIGHT: 1,275 lb
WIDTH: 96"
HEIGHT (GRAPPLE OPEN): 78.5"
HEIGHT (GRAPPLE CLOSED): 46.25"
MAX OPENING: 75"

Grapple - Brush | GBG54

GBG54 SSL BSHGPL_LT48
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER, SMALL ARTICULATED LOADER
WIDTH: 54"
WEIGHT: 310 lb
OPENING HEIGHT: 22"
MAX LOADER CAPACITY: 2,000 lb
TINE SPACING: 6.4"
TINE THICKNESS: 3/8" STEEL
MAX PSI: 3,000 psi

Grapple - Brush | GBG60

GBG60 SSL BSHGPL_LT
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER, SMALL ARTICULATED LOADER
WIDTH: 60"
WEIGHT: 650 lb
OPENING HEIGHT: 34"
MAX LOADER CAPACITY: 2,600 lb
TINE SPACING: 3"
TINE THICKNESS: 3/8" STEEL
MAX PSI: 3,000 psi

Grapple - Brush | GBG72

GBG72 SSL BSHGPL_SD
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
WEIGHT: 620 lb
WORKING WIDTH: 72"
MAX GRAPPLE OPENING: 34.2"
MAX PRESSURE: 3,000 psi

Grapple - Brush | GBG72

GBG72 SSL BSHGPL_HD
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
WEIGHT: 1,035 lb
WIDTH: 74.12"
HEIGHT: 33.33"
MAX GRAPPLE OPENING: 35.5"
MAX PRESSURE: 3,000 psi

Grapple - Brush | GBG72

GBG72 SSL BSHGPL_LT
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
WIDTH: 72"
WEIGHT: 700 lb
OPENING HEIGHT: 34"
MAX LOADER CAPACITY: 2,600 lb
TINE SPACING: 3"
TINE THICKNESS: 3/8" STEEL
MAX PSI: 3,000 psi

Grapple - Brush | GBG84

GBG84 TLB BSHGRPL_84
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER
WIDTH: 84.75"
HEIGHT: 36.45"
LENGTH: 52.36"
GRAPPLE HOOK OPENING: 57.79"
WEIGHT: 1,785 lb

Grapple - Brush | GBG84

GBG84 SSL BSHGPL_SD
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
WEIGHT: 675 lb
WORKING WIDTH: 84"
MAX GRAPPLE OPENING: 34.2"
MAX PRESSURE: 3,000 psi

Grapple - Bucket | GRB50

GRB50 CII RODBKT_50
EQUIPMENT: MINI TRACK LOADER
WEIGHT: 330 lb
WORKING WIDTH: 49.75"
CUTTING EDGE: 1/2" × 4" WELDED
MAX GRAPPLE OPENING: 27.4"
MAX PRESSURE: 3,000 psi

Grapple - Rake | GRK48

GRK48 CII RAKEGPL-48
EQUIPMENT: MINI TRACK LOADER
WEIGHT: 360 lb
WORKING WIDTH: 48"
TINE SPACING: 6.38"
MAX GRAPPLE OPENING: 36"
MAX PRESSURE: 3,000 psi

Grapple - Rake | GRK72

GRK72 SSL RAKEGPL-HD
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
WEIGHT: 840 lb
WORKING WIDTH: 72"
MAX GRAPPLE OPENING: 49"
MAX PRESSURE: 3,000 psi

Grapple - Rake | GRK84

GRK84 SSL RAKE_HD
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
WEIGHT: 950 lb
WORKING WIDTH: 84"
MAX GRAPPLE OPENING: 49"
MAX PRESSURE: 3,000 psi

Grapple - Root | GBG84

GBG84 SSL BSHGPL_HD
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
WEIGHT: 1,160 lb
WIDTH: 86.12"
HEIGHT: 33.33"
MAX GRAPPLE OPENING: 35.5"
MAX PRESSURE: 3,000 psi

Grapple - Root | GRG72

GRG72 SSL RTGPL_HD
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
WEIGHT: 1,160 lb
GRAPPLE TOP WIDTH: 68"
GRAPPLE OPENING: 48.5"
CYLINDER SIZE: 3" × 8", 3,000 psi

Grapple - Root | GRG77

GRG77 SSL RTGPL_SD
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
WIDTH: 77"
WEIGHT: 491 lb
OPENING HEIGHT: 39.5"
MAX LOADER CAPACITY: 2,600 lb
TINE SPACING: 6.2–6.3"
TINE THICKNESS: 3/8" STEEL
FRAME THICKNESS: HEAVY DUTY 9/16" STEEL FRAME
MAX PSI: 3,000 psi

Grapple - Root | GRG84

GRG84 SSL RTGPL_HD
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
WEIGHT: 1,260 lb
GRAPPLE TOP WIDTH: 80"
GRAPPLE OPENING: 48.5"
CYLINDER SIZE: 3" × 8", 3,000 psi

Grapple - Scrap | GSG50

GSG50 CII SCRPGPL_50
EQUIPMENT: MINI TRACK LOADER
WEIGHT: 325 lb
WORKING WIDTH: 49.5"
CUTTING EDGE: 1/2" × 4" WELDED
MAX GRAPPLE OPENING: 27.4"
MAX PRESSURE: 3,000 psi

Grapple - Scrap | GSG66

GSG66 SSL SCRP_GPL
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
WEIGHT: 840 lb
WORKING WIDTH: 66"
MAX GRAPPLE OPENING: 40.3"
MAX PRESSURE: 3,000 psi

Grapple - Scrap | GSG72

GSG72 SSL SCRPGPL_72
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
WEIGHT: 870 lb
WORKING WIDTH: 72"
MAX GRAPPLE OPENING: 40.3"
MAX PRESSURE: 3,000 psi

Grapple - Scrap | GSG83

GSG83 TLB SCRPGPL_83
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER
INCLUDED: HOSES AND QUICK DISCONNECTS
PLATE WEBBING: 3/8" – FULL PROTECTION TO THE CYLINDERS
OPENING: 46.3" – FOR HANDLING OF BULKY MATERIALS
OPERATION: GRAPPLES OPERATE INDEPENDENTLY TO ACCOMMODATE
UNEVEN LOADS
BUCKETS: BUCKET’S TWO CYLINDERS ARE CUSHIONED TO REDUCE
STRESS ON THE MOVING PARTS
PIVOT PINS: PIVOT PINS ARE LARGER IN DIAMETER AND COVER THE
WIDTH OF EACH GRAPPLE, REDUCING SIDE LOAD

Grapple - Scrap | GSG84

GSG84 SSL SCRPGPL_84
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
WEIGHT: 925 lb
WORKING WIDTH: 84"
MAX GRAPPLE OPENING: 40.3"
MAX PRESSURE: 3,000 psi

Grapple - Scrap | GSG93

GSG93 CWL SCRPGPL_93
EQUIPMENT: COMPACT WHEEL LOADER
WEIGHT: 1,745 lb
WORKING WIDTH: 94"
MAX GRAPPLE OPENING: 47.4"
