Snow Blades
For snow removal or light dozer applications, New Holland Construction snow blades feature adjustable skid shoes and spring loaded trip protection.
FOR USE ON:
- Skid Steer Loaders
- Compact Track Loaders
- Compact Wheel Loaders
- Backhoe Loaders

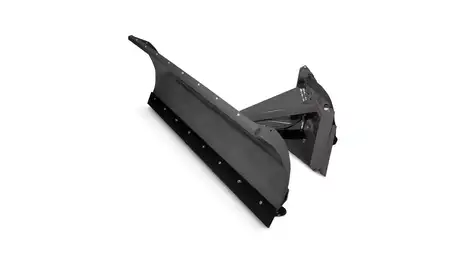

SKID STEER & COMPACT TRACK LOADER
SNOW BLADES
HEAVY DUTY
FEATURES:
- Adjustable skid shoes
- Spring loaded trip protection
- Flat face hydraulic quick disconnects included
- Hydraulic hoses included
- 35° hydraulic angle in either direction
- 31-3/4" blade height
- 10-gauge reinforced moldboard
- Available with factory-installed steel or rubber cutting edge
- Optional polyurethane edge (1" × 6")
- Optional 2-ply rubber snow deflector (1/4" × 10")
- Optional hydraulic cushion valve
APPLICATIONS:
- Snow removal

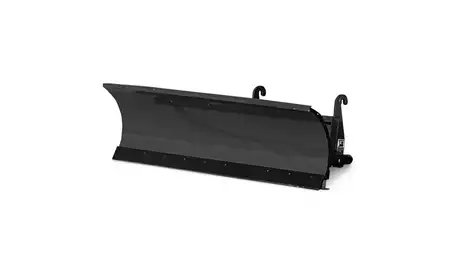

COMPACT WHEEL LOADER
SNOW BLADES
SSL COUPLER
FEATURES:
- Adjustable skid shoes
- Spring loaded trip protection
- 35° hydraulic angle in either direction
- Replaceable edge
- Flat face hydraulic quick disconnects included
- Hydraulic hoses included
- 31-3/4" blade height
- 10-gauge reinforced moldboard
- Available with factory-installed steel or rubber cutting edge
- Optional polyurethane edge (1" × 6")
- Optional 2-ply rubber snow deflector (1/4 × 10")
- Optional hydraulic cushion valve (included on 120" blades)
BACKHOE LOADER SNOW BLADES
STANDARD
FEATURES:
- Versatile grading and clean-up tool
- Blade and frame built to withstand heavy-duty seasonal use
- 35° hydraulically adjustable angle
- Spring-loaded safety trip mechanism
- Floating blades that eliminate the stress on tractor and loader
- Optional rubber edge (1-1/2" × 10")
- Optional polyurethane edge (1" × 6")
- Optional 2-ply rubber snow deflector (1/4" × 10")
- Optional hydraulic cushion valve (included on 120" blade)
- Replaceable edge, adjustable skid shoes
APPLICATIONS:
- Snow removal
