Pallet Forks

Featuring standard brick guard and lock in position clips, New Holland Construction pallet forks lift, stack, move and load pallets and construction material smoothly and efficiently.

New Holland Construction Pallet Fork Attachment

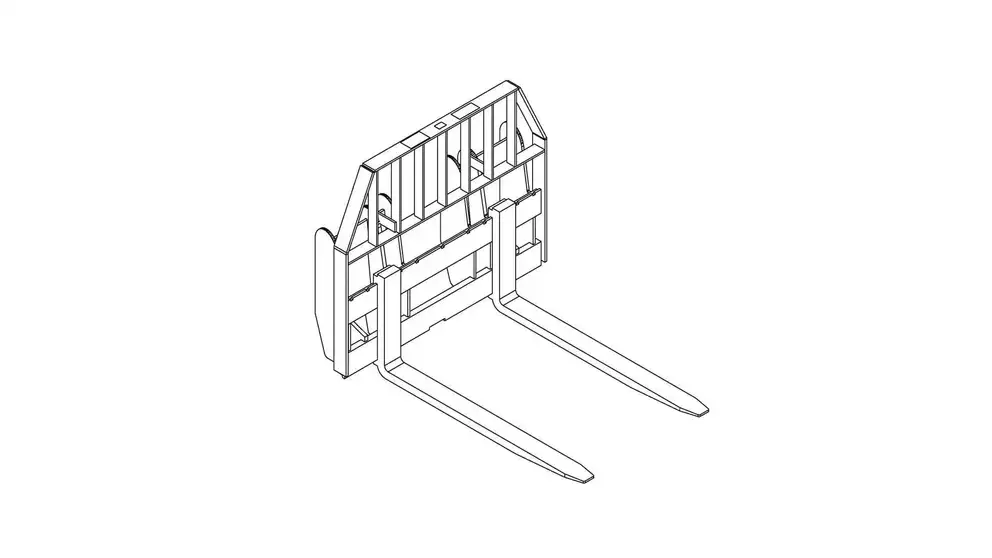

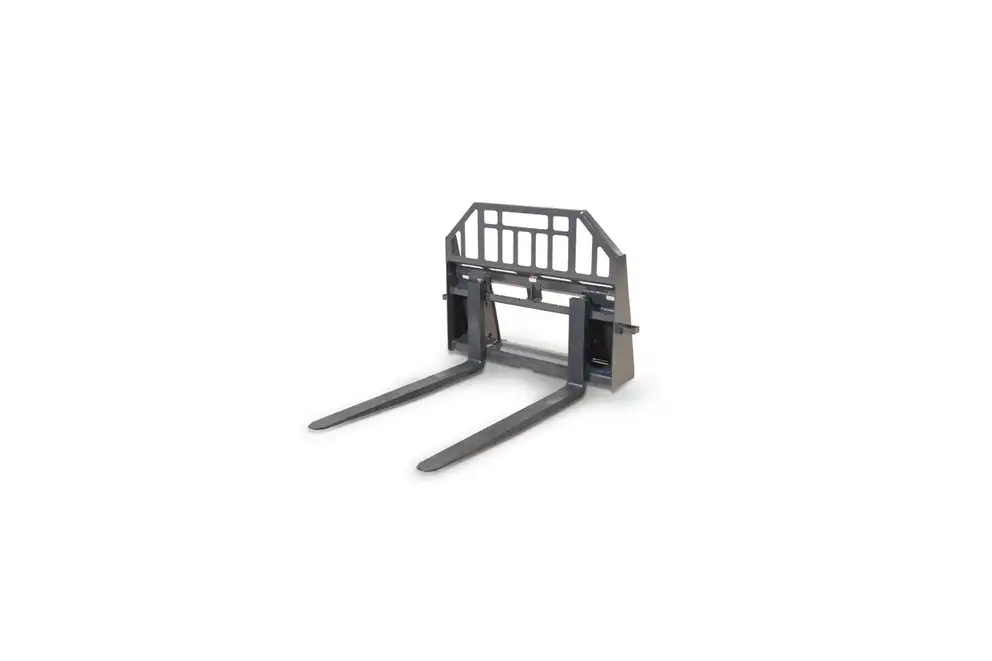

SKID STEER AND COMPACT TRACK LOADER PALLET FORKS

Featuring standard brick guard and lock in position clips, this rugged pallet fork is designed to lift, stack, move or load pallets and construction materials with your skid steer or compact track loader.

LEARN MORE

PALLET FORK FEATURES

FEATURES:

Heat-treated tines, manually adjustable
Locking position pins
High visibility back guard
Steps for easy entry to cab
Frame forward design for use on ROPS or cab units

Heavy-Duty Tines:

42” or 48” tines – 1-3/5” x 4” cross section
5500#/pair ITA Class II rated tines

Standard Tines:

42” or 48” tines – 1-2/5” x 4” cross section
4000#/pair ITA Class II rated tines

Light-Duty Tines:

42” and 48” tines – 1-1/5” x 3” cross section
2500#/pair ITA Class II rated tines

APPLICATIONS:

Handling pallets and construction materials

ROPS FRAME

FEATURES:

Heat-treated tines, manually adjustable
Locking position pins
High visibility back guard
Steps for easy entry to cab
Original design
Close-coupled frame
High lift capacity
Backguard contact with fully open cab door on some models

Heavy-Duty Tines:

42" Tines – 1-1/2" × 4" cross-section
48" Tines – 1-3/4" × 4" cross-section
5500#/pair ITA Class II rated tines

Standard Tines:

42" Tines – 1-3/8" × 4" cross-section
48" Tines – 1-3/8" × 4" cross-section
4000#/pair rated tines

APPLICATIONS:

Handling pallets and construction materials

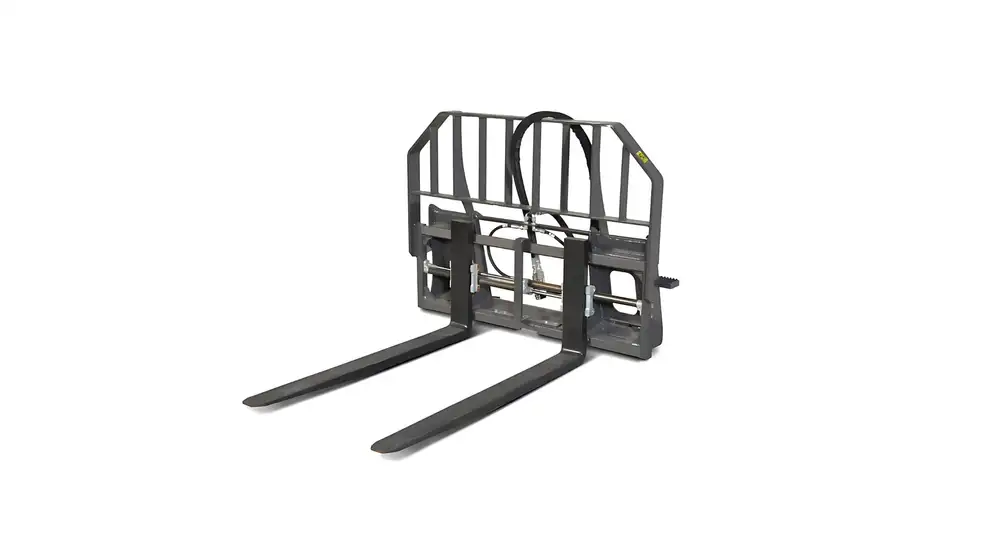

HYDRAULIC POSITIONING

FEATURES:

Hydraulically position tines from 10" to 44" spacing (outside to outside)
Excellent operator visibility
Steps for easy entry to cab
Zinc plated, corrosion resistant components
Center mount, 4" wide fork carriers
42/48" Tines – 1-1/2" × 4" cross-section
5500#/pair ITA Class II rated tines
Hoses and flat face hydraulic disconnects included

APPLICATIONS:

Handling pallets and construction materials

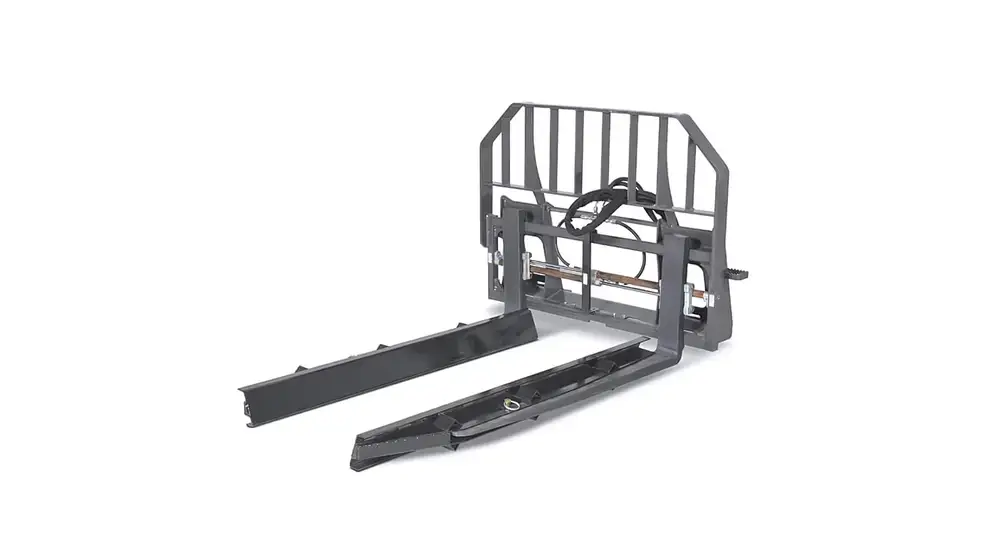

HYDRAULIC POSITIONING WITH NURSERY SLEEVES

FEATURES:

Multi-purpose attachment features standard pallet forks for handling pallets and construction materials, and slip-on fork sleeves for handling nursery stock
Slip-on nursery fork sleeves protect the tree root ball when clamping and transporting
Hydraulically position tines from 10" to 44" spacing (outside to outside)
Excellent operator visibility
Steps for easy entry to cab
Zinc plated, corrosion resistant components
Center mount, 4" wide fork carriers
48" Tines – 1-1/2" × 4" cross-section
5500#/pair ITA Class II rated tines
Hoses and flat face hydraulic disconnects included

APPLICATIONS:

Standard pallet forks for handling pallets and construction materials
Slip-on fork sleeves for handling nursery stock

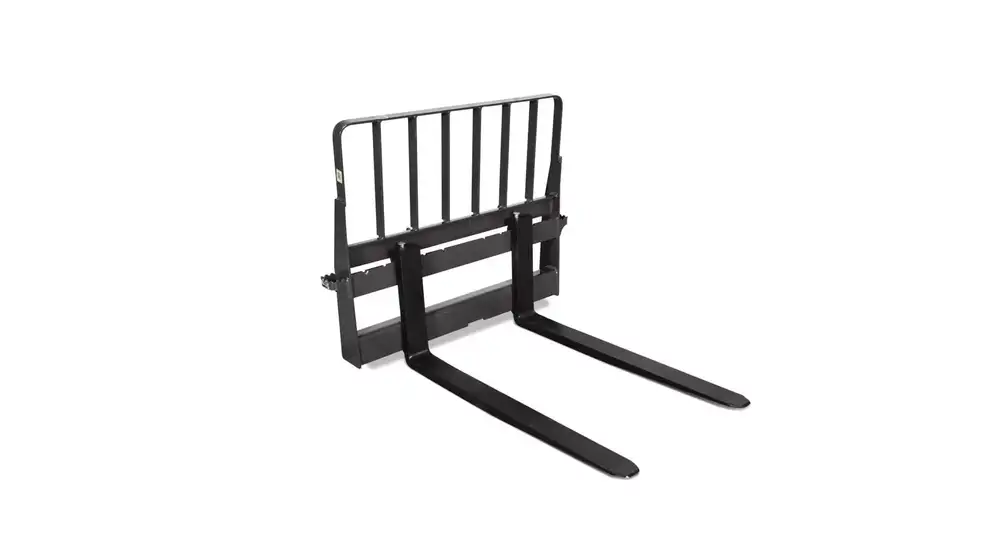

COMPACT WHEEL LOADER
PALLET FORKS

Lift, stack, move or load pallets and construction materials with your compact wheel loader. New Holland pallet forks feature standard brick guard and lock in position clips.

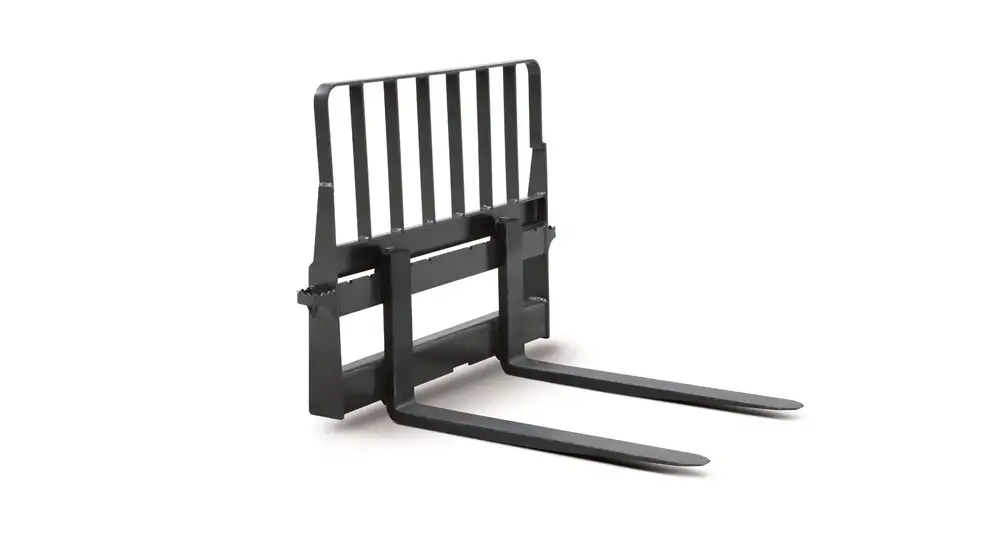

BACKHOE LOADER PALLET FORKS

New Holland pallet forks feature standard brick guard and lock in position clips. Lift, stack, move or load pallets and construction materials with your backhoe loader.
