Grapples

Available in three styles for utility, construction and logging, there’s a New Holland Construction grapple to fit your machine and job requirements.

FOR USE ON:

Skid Steer Loaders
Compact Track Loaders
Compact Wheel Loaders
Backhoe Loaders

SKID STEER & COMPACT TRACK LOADER GRAPPLES

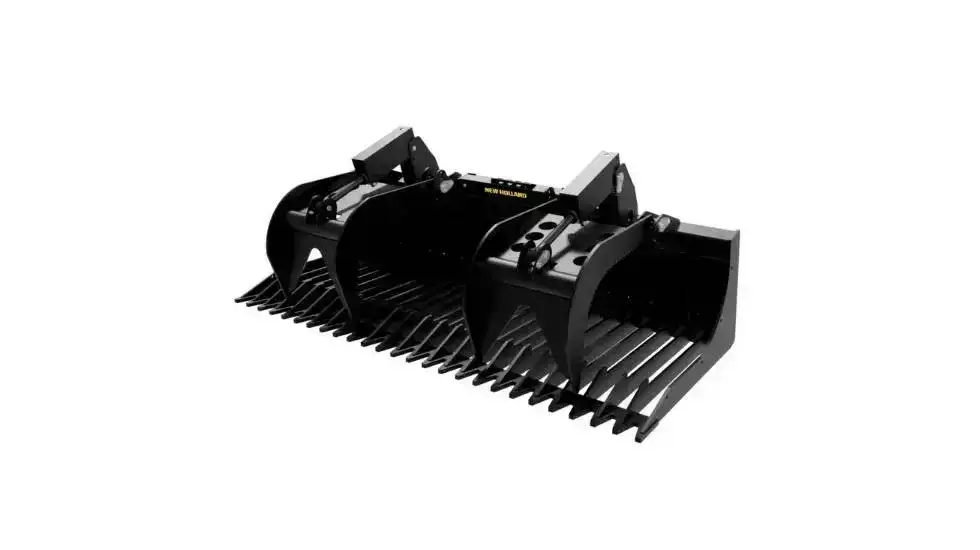

BRUSH - CONSTRUCTION

FEATURES:

Dual, independent grapples
6" tine spacing
Standard cylinder guards protect all cylinder components
1-1/4" cylinder pivot pins
1-1/4" × 24" grapple pins greatly reduce torsional force
1/2" end plates
Cushioned and sleeved cylinders – 2" × 8" × 1-1/4"
Standard load check valve for positive clamp force
100K psi yield strength tine material
Throat opening grapple open – 40"
Throat opening grapple closed – 16-1/2"
Overall depth – 39"

Compact Wheel Loader compatible

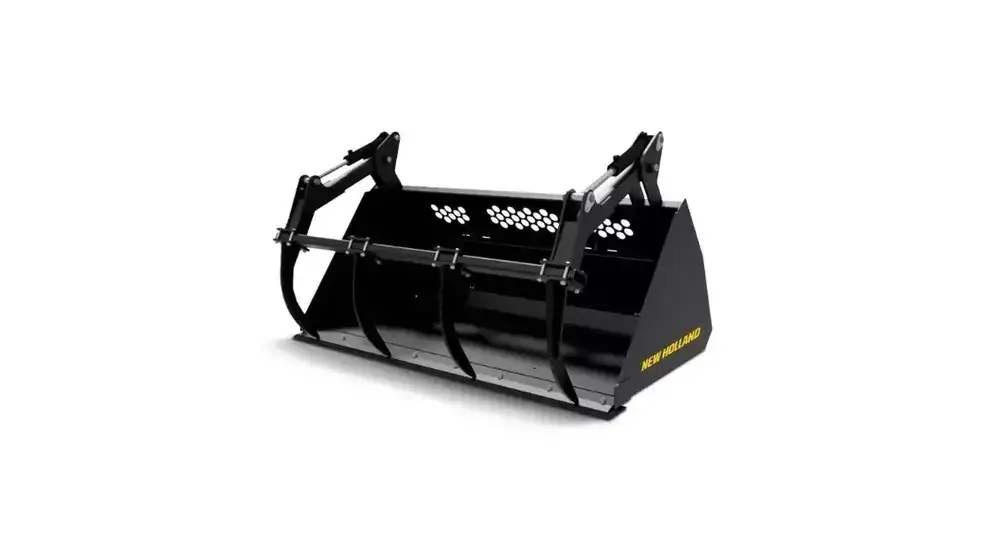

BRUSH - UTILITY

FEATURES:

Dual, independent grapples
6" tine spacing
Standard cylinder guards protect all cylinder components
1-1/4" cylinder pivot pins
1-1/4" × 24" grapple pins greatly reduce torsional force
3/8" end plates
Cushioned and sleeved cylinders – 2" × 8" × 1-1/4"
Standard load check valve for positive clamp force
100K psi yield strength tine material
Throat opening grapple open – 29"
Throat opening grapple closed – 17-3/8"
Overall depth – 36"

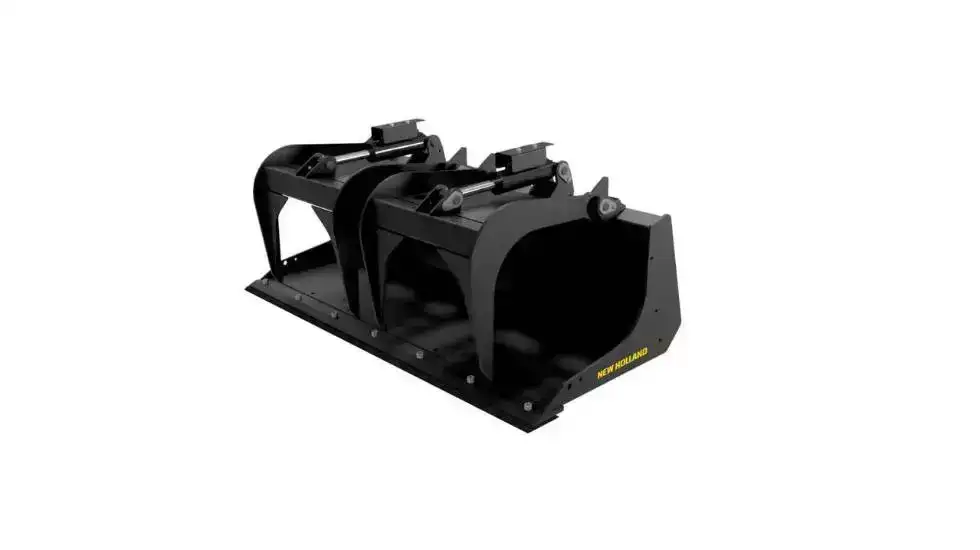

SCRAP - CONSTRUCTION

FEATURES:

Standard cylinder guards protect all cylinder components
Standard load check valve for positive clamp force
Dual independent grapples
1-1/4" cylinder pivot pins
1-1/4" × 24" grapple pins reduce torsional force
1/2" end plates
Cushioned cylinders – 2" × 8" × 1-1/4"
Bucket edge drilled for replaceable edge
Throat opening grapple open – 40"
Throat opening grapple closed – 20"
Overall depth – 38"
Includes hoses and quick disconnects

Compact Wheel Loader compatible

SCRAP - UTILITY

FEATURES:

Includes hoses and quick disconnects
Dual independent grapples
Standard cylinder guards protect all cylinder components
Standard load check valve for positive clamp force
1-1/4" cylinder pivot pins
1-1/4" × 24" grapple pins reduce torsional force
1/2" end plates
Cushioned cylinders – 2" × 8" × 1-1/4"
Bucket edge drilled for replaceable edge
Throat opening grapple open – 34"
Throat opening grapple closed – 19-3/4"\
Overall depth – 36"

Compact Wheel Loader compatible

LARGE CAPACITY

FEATURES:

Fully utilizes the increased capacity of large New Holland machines to get jobs done faster
Open bottom and back providing excellent visibility while allowing smaller debris to fall through
Heavy-duty 1/2" Grade 80 steel tines and 1/2" Grade 50 steel outer jaw tines
Fully gusseted tine tips for added strength
Two independent 2-1/2” bore, 8-3/8” hydraulic cylinders feature corrosion, dent and flake resistant NitroSteel® cylinder rod
Teflon® coated bushings provide lubrication at all pivot locations
Comes standard with cylinder guards
Greasable 1-9⁄16" diameter hinge pins and 1-1/4" cylinder pins
Durable powder coat finish
1-year standard product warranty through CNH Industrial
Replacement and wear parts supported in our depot network

BRUSH - CONSTRUCTION

FEATURES:

Dual, independent grapples
6" tine spacing
Standard cylinder guards protect all cylinder components
1-1/4" cylinder pivot pins
1-1/4" × 24" grapple pins greatly reduce torsional force
1/2" end plates
Cushioned and sleeved cylinders – 2" × 8" × 1-1/4"
Standard load check valve for positive clamp force
100K psi yield strength tine material
Throat opening grapple open – 40"
Throat opening grapple closed – 16-1/2"
Overall depth – 39"

Compact Wheel Loader compatible

BRUSH - UTILITY

FEATURES:

Dual, independent grapples
6" tine spacing
Standard cylinder guards protect all cylinder components
1-1/4" cylinder pivot pins
1-1/4" × 24" grapple pins greatly reduce torsional force
3/8" end plates
Cushioned and sleeved cylinders – 2" × 8" × 1-1/4"
Standard load check valve for positive clamp force
100K psi yield strength tine material
Throat opening grapple open – 29"
Throat opening grapple closed – 17-3/8"
Overall depth – 36"

SCRAP - CONSTRUCTION

FEATURES:

Standard cylinder guards protect all cylinder components
Standard load check valve for positive clamp force
Dual independent grapples
1-1/4" cylinder pivot pins
1-1/4" × 24" grapple pins reduce torsional force
1/2" end plates
Cushioned cylinders – 2" × 8" × 1-1/4"
Bucket edge drilled for replaceable edge
Throat opening grapple open – 40"
Throat opening grapple closed – 20"
Overall depth – 38"
Includes hoses and quick disconnects

Compact Wheel Loader compatible

SCRAP - UTILITY

FEATURES:

Includes hoses and quick disconnects
Dual independent grapples
Standard cylinder guards protect all cylinder components
Standard load check valve for positive clamp force
1-1/4" cylinder pivot pins
1-1/4" × 24" grapple pins reduce torsional force
1/2" end plates
Cushioned cylinders – 2" × 8" × 1-1/4"
Bucket edge drilled for replaceable edge
Throat opening grapple open – 34"
Throat opening grapple closed – 19-3/4"\
Overall depth – 36"

Compact Wheel Loader compatible

LARGE CAPACITY

FEATURES:

Fully utilizes the increased capacity of large New Holland machines to get jobs done faster
Open bottom and back providing excellent visibility while allowing smaller debris to fall through
Heavy-duty 1/2" Grade 80 steel tines and 1/2" Grade 50 steel outer jaw tines
Fully gusseted tine tips for added strength
Two independent 2-1/2” bore, 8-3/8” hydraulic cylinders feature corrosion, dent and flake resistant NitroSteel® cylinder rod
Teflon® coated bushings provide lubrication at all pivot locations
Comes standard with cylinder guards
Greasable 1-9⁄16" diameter hinge pins and 1-1/4" cylinder pins
Durable powder coat finish
1-year standard product warranty through CNH Industrial
Replacement and wear parts supported in our depot network

BRUSH - CONSTRUCTION

FEATURES:

Dual, independent grapples
6" tine spacing
Standard cylinder guards protect all cylinder components
1-1/4" cylinder pivot pins
1-1/4" × 24" grapple pins greatly reduce torsional force
1/2" end plates
Cushioned and sleeved cylinders – 2" × 8" × 1-1/4"
Standard load check valve for positive clamp force
100K psi yield strength tine material
Throat opening grapple open – 40"
Throat opening grapple closed – 16-1/2"
Overall depth – 39"

Compact Wheel Loader compatible

BRUSH - UTILITY

FEATURES:

Dual, independent grapples
6" tine spacing
Standard cylinder guards protect all cylinder components
1-1/4" cylinder pivot pins
1-1/4" × 24" grapple pins greatly reduce torsional force
3/8" end plates
Cushioned and sleeved cylinders – 2" × 8" × 1-1/4"
Standard load check valve for positive clamp force
100K psi yield strength tine material
Throat opening grapple open – 29"
Throat opening grapple closed – 17-3/8"
Overall depth – 36"

SCRAP - CONSTRUCTION

FEATURES:

Standard cylinder guards protect all cylinder components
Standard load check valve for positive clamp force
Dual independent grapples
1-1/4" cylinder pivot pins
1-1/4" × 24" grapple pins reduce torsional force
1/2" end plates
Cushioned cylinders – 2" × 8" × 1-1/4"
Bucket edge drilled for replaceable edge
Throat opening grapple open – 40"
Throat opening grapple closed – 20"
Overall depth – 38"
Includes hoses and quick disconnects

Compact Wheel Loader compatible

SCRAP - UTILITY

FEATURES:

Includes hoses and quick disconnects
Dual independent grapples
Standard cylinder guards protect all cylinder components
Standard load check valve for positive clamp force
1-1/4" cylinder pivot pins
1-1/4" × 24" grapple pins reduce torsional force
1/2" end plates
Cushioned cylinders – 2" × 8" × 1-1/4"
Bucket edge drilled for replaceable edge
Throat opening grapple open – 34"
Throat opening grapple closed – 19-3/4"\
Overall depth – 36"

Compact Wheel Loader compatible

LARGE CAPACITY

FEATURES:

Fully utilizes the increased capacity of large New Holland machines to get jobs done faster
Open bottom and back providing excellent visibility while allowing smaller debris to fall through
Heavy-duty 1/2" Grade 80 steel tines and 1/2" Grade 50 steel outer jaw tines
Fully gusseted tine tips for added strength
Two independent 2-1/2” bore, 8-3/8” hydraulic cylinders feature corrosion, dent and flake resistant NitroSteel® cylinder rod
Teflon® coated bushings provide lubrication at all pivot locations
Comes standard with cylinder guards
Greasable 1-9⁄16" diameter hinge pins and 1-1/4" cylinder pins
Durable powder coat finish
1-year standard product warranty through CNH Industrial
Replacement and wear parts supported in our depot network

COMPACT WHEEL LOADER GRAPPLES

BRUSH

FEATURES:

Handles logs, brush, rock and debris while leaving soil
Dual, independent grapples includes hoses and quick disconnects
Pilot-operated check valve for locking grapple into position
Lubricated pivot pins
Replaceable bushings in bucket and grapples
100K psi yield strength tine material Construction Brush Grapple
6" tine spacing
Standard cylinder guards protect all cylinder components
1-1/4" cylinder pivot pins
1-1/4" × 24" grapple pins greatly reduce torsional force
1/2" thick end plates
Cushioned cylinders – 2" × 8" × 1-1/4"
Throat opening grapple open – 40"
Throat opening grapple closed – 16-1/2"
Overall depth – 39" Heavy-Duty Brush Grapple
6-1/4" tine spacing
1-3/8" cylinder pivot pins
1-3/4" grapple pins
3/4" thick end plates and tines
Cushioned cylinders – 2-1/2"× 9" × 1-1/2"
Throat opening grapple open – 46-3/4"
Throat opening grapple closed – 23-3/8"
Overall depth – 41-5/8"

Skid steer compatible

SCRAP - SSL COUPLER

FEATURES:

Standard cylinder guards protect all cylinder components
Dual independent grapples
Open ends to handle long objects
Drilled for bolt-on edge
Hydraulic hoses and flat face hydraulic quick disconnects included Construction Scrap Grapple
Standard load check valve for positive clamp force
1-1/4" cylinder pivot pins
1-1/4" × 24" grapple pins reduce torsional force
1/2" end plates
Cushioned cylinders – 2" × 8" × 1-1/4"
Bucket edge drilled for replaceable edge
Throat opening, grapple open – 40"
Throat opening, grapple closed – 20"
Overall depth – 38" Heavy-Duty Scrap Grapple
1-1/2" × 27-1/8" patented grapple pins reduce torsional force
1-1/2" × 8-5/8" heat treated, greasable pivot points
1/2" end plates
Cushioned and sleeved cylinders – 2-1/2" × 8" × 1-3/4"
Throat opening, grapple open – 47-2/5"
Throat opening, grapple closed – 21-4/5"
Overall depth – 37-1/3"

Skid steer compatible

SCRAP - HORIZONTAL PIN COUPLER

FEATURES:

Standard cylinder guards protect all cylinder components
Dual independent grapples
Open ends to handle long objects
Drilled for bolt-on edge
Hydraulic hoses and flat face hydraulic quick disconnects included
1-1/2" × 8-5/8" heat-treated, greasable pivot pins
1-1/2" × 27-1/8" patented grapple pins reduce torsional force
Cushioned and sleeved cylinders – 2-1/2" × 8" × 1-3/4" Heavy-Duty Construction Scrap Grapple
3/8" end plates
Throat opening, grapple open – 46-2/5"
Throat opening, grapple closed – 19-1/10"
Overall depth – 37-4/5" Heavy-Duty Scrap Grapple
1/2" end plates
Throat opening, grapple open – 47-2/5"
Throat opening, grapple closed – 21-4/5"
Overall depth – 37-1/3"

BACKHOE LOADER GRAPPLES

SCRAP

FEATURES:

Hoses and quick disconnects included
3/8" plate webbing – full protection to the cylinders
46-1/3" opening for handling of bulky materials
Grapples operate independently to accommodate uneven loads
Bucket’s two cylinders are cushioned to reduce stress on the moving parts
Pivot pins are larger in diameter and cover the width of each grapple, reducing side load

APPLICATIONS:

Moves metal, concrete, paper, cardboard and other bulky material

Next Steps

OFFERS & PROMOTIONS

BUY PARTS

FIND A DEALER
