Brooms
Big cleanup job to tackle? Choose New Holland Construction brooms to clean up streets, parking lots, worksites and more.
SKID STEER & COMPACT TRACK LOADERS

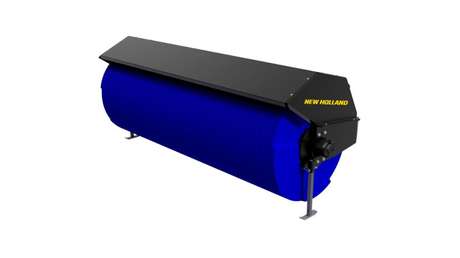

ANGLE BROOMS
FEATURES:
- Available in Hydraulic or Manual options
- 32" brush diameter
- Parking stands
- Angles 30° left or right
- Fast wafer replacement
- Integral nozzle mounting for water application
- Bolt together hood for simple, less costly replacement, if damaged
- Brush and wafer package available in steel/poly steel options
APPLICATIONS:
- Street cleaning and parking lot maintenance, road maintenance clean-up, bridge deck clean-up, job site clean-up
- Snow removal

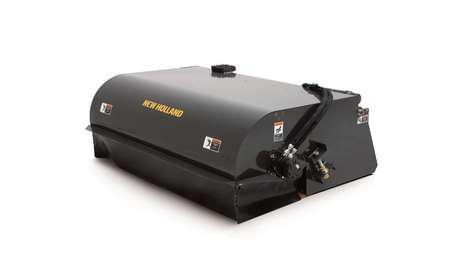

HOPPER BROOMS
FEATURES:
- 26" brush diameter
- Bi-directional motor for forward or reverse sweeping
- High-capacity single drive motor for 10–25 GPM systems
- Direct drive brush motor eliminates chains and sprockets
- No caster wheel allows closer proximity to objects and better contact with sweeping surface
- Peripheral rubber skirt keeps debris and dust contained
- Combination poly and wire brush
APPLICATIONS:
- Street cleaning and parking lot maintenance, road maintenance clean-up, bridge deck clean-up, job site clean-up

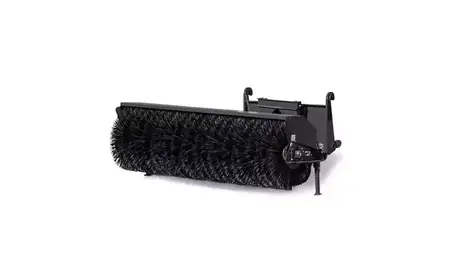

PICK-UP BROOMS
FEATURES:
- 26" brush diameter
- Poly/wire combination brush
- Bi-directional motor for forward or reverse sweeping
- High-capacity single drive motor for 12–23 GPM systems
- Quick-change brush without breaking hydraulic lines
- Drive motor can be removed for brush change without tools
- No tools required for brush pattern adjustment
- “Volumizing” feature for increased bucket capacity
- Heavy-duty caster wheel and wheel mount
- Integral sprinkler nozzle mounts
APPLICATIONS:
- Street cleaning and parking lot maintenance, road maintenance clean-up, bridge deck clean-up, job site clean-up
BACKHOE & TRACTOR LOADERS
ANGLE BROOMS
FEATURES:
- Available in Hydraulic or Manual options
- 32" brush diameter
- Parking stands
- Angles 30º right or left
- Fast wafer replacement
- Adjustable broom head
- Integral nozzle mounting for water application
- Brush and wafer package available in steel/poly steel options
- Bolt together hood for simple, less costly replacement, if damaged
- Dual hydraulic motors
- Caster wheels – 4.80-8 tires
APPLICATIONS:
- Street cleaning and parking lot maintenance, road maintenance clean-up, bridge deck clean-up, jobsite clean-up
- Snow removal

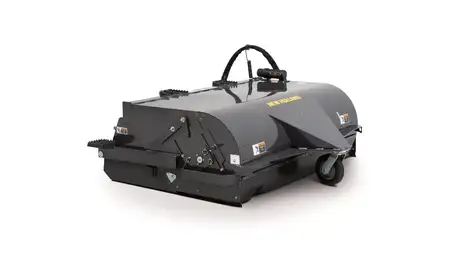

PICK-UP BROOMS
FEATURES:
- 26" diameter poly/wire combination brush
- CS high dump collector sweeper with floating suspension
- High dump feature to dump into trucks and containers
- No chains, additional connections to the loader or electrical connections are required to dump
- Forward sweeping action into the front mounted collector hopper
- E-Z change brush pattern adjustment and floating brush
APPLICATIONS:
- Parking lot sweeping, city street sweeping, construction site clean-up, access road clean-up, county and state road sweeping
COMPACT WHEEL LOADERS
ANGLE BROOMS
FEATURES:
- Available in Hydraulic or Manual options
- 32" brush diameter
- Parking stands
- Angles 30º right or left
- Fast wafer replacement
- Adjustable broom head
- Integral nozzle mounting for water application
- Brush and wafer package available in steel/poly steel options
- Bolt together hood for simple, less costly replacement, if damaged
- Dual hydraulic motors
- Caster wheels – Pneumatic 4.80-8 tires
APPLICATIONS:
- Street cleaning and parking lot maintenance, road maintenance clean-up, bridge deck clean-up, jobsite clean-up
- Snow removal
ACCESSORIES

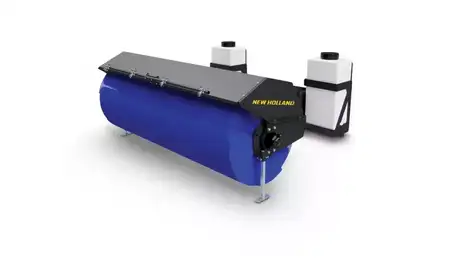

WATER TANK
FOR USE ON:
- Skid Steer Loaders
- Compact Track Loaders
- Compact Wheel Loaders
FEATURES:
- Largest in the industry with a 40-gallon capacity for less frequent refills
- Self-contained unit, no skid steer modification required
- Self-priming pump
- Operates on standard 12V power source
- Plug & Play Ready: Includes wiring harness and universal mounting plate
- Must order relay harness Part No. 48050918 for joystick operation with the water tank
APPLICATIONS:
- Parking lots
- Municipal jobs
- Streets
- Contractor jobs

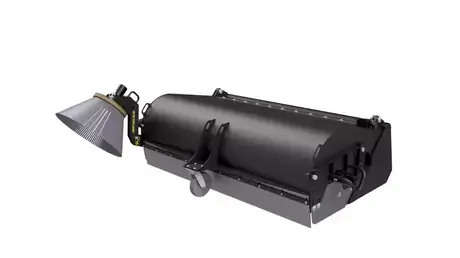

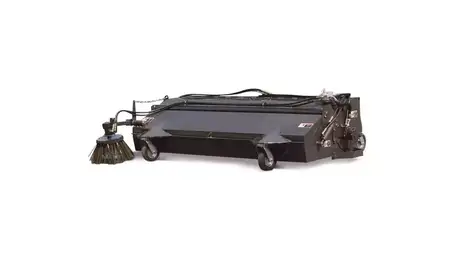

CURB SWEEP
FOR USE ON:
- Skid Steer Loaders
- Compact Track Loaders
- Compact Wheel Loaders
FEATURES:
- Available in 100% Poly or 100% Steel brush models
- Mounts on 72" or 84" Pick up broom attachment
- Left or right side mounting options
- Can be moved up when not needed
APPLICATIONS:
- Municipal jobs
- Landscaping
- Contractor jobs
