Bale Spears
Move and stack large square or round bales, easily and effectively.
FEATURES:
- Move and stack square bales in half the time
- Optional stacking extensions for multiple bale handling
- Open back design for operator visibility
- High-strength steel for increased load rating
- Bolt on tines for custom configurations
- Plug & Play Ready: Includes universal mounting plate
APPLICATIONS:
- Agriculture
- Hobby farming
SKID STEER & COMPACT TRACK LOADERS

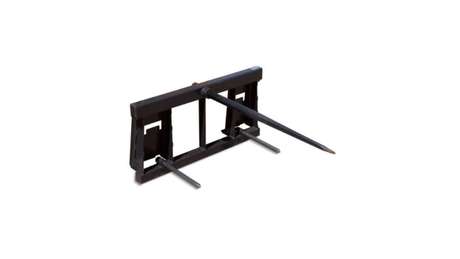

SINGLE TINE STANDARD DUTY
- For bales up to 2,000 lbs. @ 24" load center
- Main spear – single tapered, forged, 1-1/4" diameter × 44"
- Stabilizer spikes – dual 1-1/4" diameter × 19"
SINGLE TINE HEAVY-DUTY
- For bales up to 3,000 lbs. @ 24" load center
- Main spear – single tapered, forged, 2-1/8" diameter × 49"
- Stabilizer spikes – dual 1-1/4" diameter × 19"

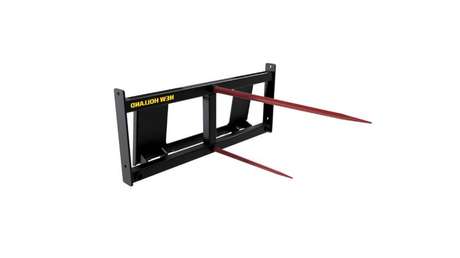

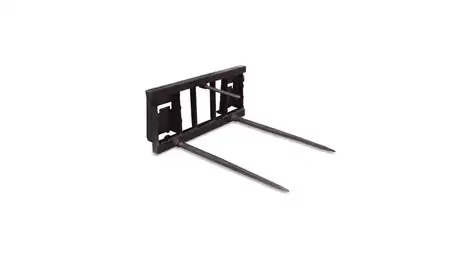

DUAL TINE HEAVY-DUTY
- For bales up to 4,000 lbs. @ 24" load center
- Main spears – dual tapered, forged, 2-1/8" diameter × 49"
- Stabilizer spike – single 1-1/4" diameter × 19"

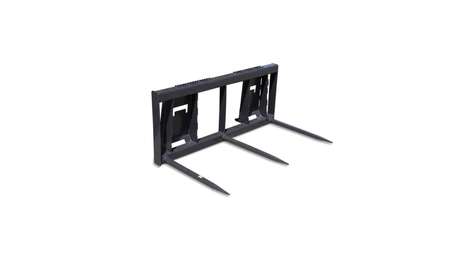

THREE TINE BALE SPEARS
- For bales up to 4,000 lbs. @ 24" load center
- Main spears – three tapered, forged, 1-3/4" diameter
- Available with 27" or 44" length spears
SQUARE BALE SPEARS
- Configuration: 32" x 3
- 32" Tine Load Rating: 1,795 lbs
- Plug & Play Ready: Includes universal mounting plate
ROUND BALE SPEAR
- 32" Tine Load Rating: 1,795 lbs
- 48" Tine Load Rating 3,485 lbs
- Plug & Play Ready: Includes universal mounting plate
SINGLE TINE STANDARD DUTY
- For bales up to 2,000 lbs. @ 24" load center
- Main spear – single tapered, forged, 1-1/4" diameter × 44"
- Stabilizer spikes – dual 1-1/4" diameter × 19"
SINGLE TINE HEAVY-DUTY
- For bales up to 3,000 lbs. @ 24" load center
- Main spear – single tapered, forged, 2-1/8" diameter × 49"
- Stabilizer spikes – dual 1-1/4" diameter × 19"
DUAL TINE HEAVY-DUTY
- For bales up to 4,000 lbs. @ 24" load center
- Main spears – dual tapered, forged, 2-1/8" diameter × 49"
- Stabilizer spike – single 1-1/4" diameter × 19"
THREE TINE BALE SPEARS
- For bales up to 4,000 lbs. @ 24" load center
- Main spears – three tapered, forged, 1-3/4" diameter
- Available with 27" or 44" length spears
SQUARE BALE SPEARS
- Configuration: 32" x 3
- 32" Tine Load Rating: 1,795 lbs
- Plug & Play Ready: Includes universal mounting plate
ROUND BALE SPEAR
- 32" Tine Load Rating: 1,795 lbs
- 48" Tine Load Rating 3,485 lbs
- Plug & Play Ready: Includes universal mounting plate
SINGLE TINE STANDARD DUTY
- For bales up to 2,000 lbs. @ 24" load center
- Main spear – single tapered, forged, 1-1/4" diameter × 44"
- Stabilizer spikes – dual 1-1/4" diameter × 19"
SINGLE TINE HEAVY-DUTY
- For bales up to 3,000 lbs. @ 24" load center
- Main spear – single tapered, forged, 2-1/8" diameter × 49"
- Stabilizer spikes – dual 1-1/4" diameter × 19"
DUAL TINE HEAVY-DUTY
- For bales up to 4,000 lbs. @ 24" load center
- Main spears – dual tapered, forged, 2-1/8" diameter × 49"
- Stabilizer spike – single 1-1/4" diameter × 19"
THREE TINE BALE SPEARS
- For bales up to 4,000 lbs. @ 24" load center
- Main spears – three tapered, forged, 1-3/4" diameter
- Available with 27" or 44" length spears
SQUARE BALE SPEARS
- Configuration: 32" x 3
- 32" Tine Load Rating: 1,795 lbs
- Plug & Play Ready: Includes universal mounting plate
ROUND BALE SPEAR
- 32" Tine Load Rating: 1,795 lbs
- 48" Tine Load Rating 3,485 lbs
- Plug & Play Ready: Includes universal mounting plate
COMPACT WHEEL LOADERS
SINGLE TINE STANDARD DUTY
- For bales up to 3,000 lbs. @ 24" load center
- Main spear – single tapered, forged, 2-1/8" dia. × 49"
- Stabilizer spikes – dual 1-1/4" dia. × 19"
DUAL TINE BALE SPEARS
- For bales up to 4,000 lbs. @ 24" load center
- Main spear – single tapered, forged, 2-1/8" dia. × 49"
- Stabilizer spikes – dual 1-1/4" dia. × 19"
THREE TINE BALE SPEARS
- For bales up to 4,000 lbs. @ 24" load center
- Main spears – three tapered, forged, 1-3/4" diameter
- Available with 27" or 44" length spears
SQUARE BALE SPEARS
- Configuration: 32" x 3
- 32" Tine Load Rating: 1,795 lbs
- Plug & Play Ready: Includes universal mounting plate
ROUND BALE SPEAR
- 32" Tine Load Rating: 1,795 lbs
- 48" Tine Load Rating 3,485 lbs
- Plug & Play Ready: Includes universal mounting plate
BACKHOE & TRACTOR LOADERS
DUAL TINE BALE SPEARS
- For bales up to 4,000 lbs. @ 24" load center
- Main spears – dual tapered, forged, 2-1/8" diameter × 49"
- Stabilizer spike – single 1-1/4" diameter × 19"
