Buckets

Buckets are versatile attachment designed for digging, loading, carrying, grading, and moving soil, gravel, debris, and other materials efficiently across the jobsite.

FIND A DEALER

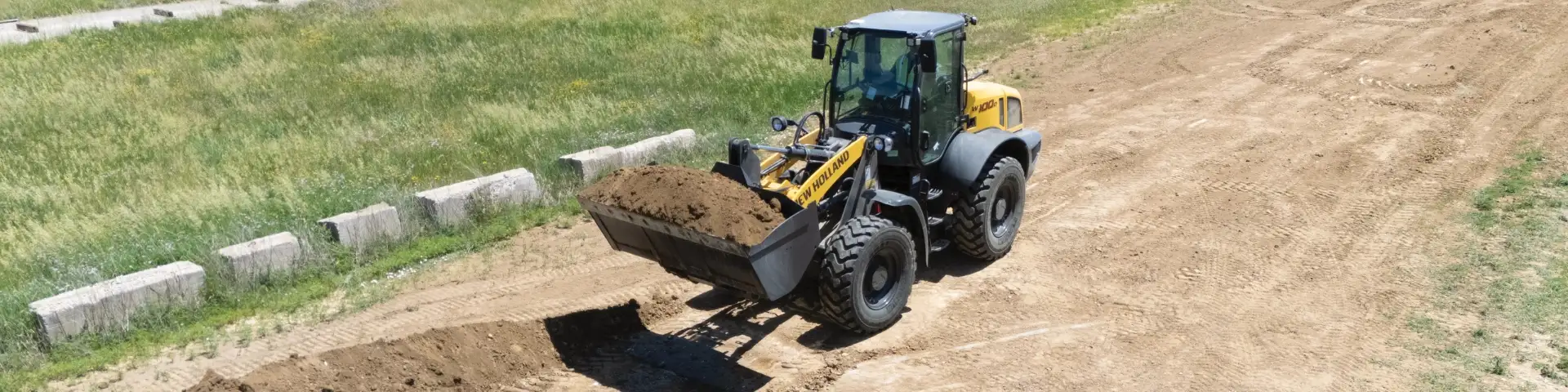

Compact wheel loader lifting a pile of dirt.

Available Models

Find the right attachment to meet the needs of your operation.

Bucket - 4-in-1 | BU4N1102

BU4N1102 WL 4N1_CPL102
EQUIPMENT:
CAPACITY: 2.5 yd³

Bucket - 4-in-1 | BU4N148S

BU4N148S CII 4N1_48
EQUIPMENT: MINI TRACK LOADER
WEIGHT: 330 lb
OVERALL WIDTH: 49.5"
GRAPPLE OPENING: 18.5"
BOLT ON CUTTING EDGE: OPTIONAL
STRUCK CAPACITY: 4.75 ft³

Bucket - 4-in-1 | BU4N166S

BU4N166S SSL 4N1_UT
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER, SMALL ARTICULATED LOADER
WIDTH: 66"
CAPACITY: 10.2 ft³ STRUCK, 14.2 ft³ HEAPED

Bucket - 4-in-1 | BU4N172S

BU4N172S SSL 4N1_HD
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
WIDTH: 72"
CAPACITY: 11.2 ft³ struck, 15.6 ft³ heaped

Bucket - 4-in-1 | BU4N172S

BU4N172S SSL 4N1_UT
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER, COMPACT WHEEL LOADER
WIDTH: 73"
HEIGHT: 27.69"
LENGTH: 37.47"
CLAM LENGTH: 26"
BACKBLADE LENGTH: 11.52"
CLAM OPENING: 34.79"
PRESSURE: 3,000 psi
FORCE: 6,400 lb
WEIGHT: 900 lb
HEAPED CAPACITY: 19.99 ft³

Bucket - 4-in-1 | BU4N178S

BU4N178S CDL 4N1_HD
EQUIPMENT:
WIDTH: 78.88"
HEIGHT: 28.5"
DEPTH: 36.19"
WEIGHT: 1,350 lb

Bucket - 4-in-1 | BU4N178S

BU4N178S SSL 4N1_HD
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER, COMPACT WHEEL LOADER
WIDTH: 78.75"
HEIGHT: 27.69"
LENGTH: 37.47"
CLAM LENGTH: 26"
BACKBLADE LENGTH: 11.52"
CLAM OPENING: 34.79"
PRESSURE: 3,000 psi
FORCE: 6,400 lb
WEIGHT: 935 lb
HEAPED CAPACITY: 21.69 ft³

Bucket - 4-in-1 | BU4N182S

BU4N182S CWL 4N1_HD
EQUIPMENT: COMPACT WHEEL LOADER
WIDTH: 83"
HEIGHT: 36.41"
DEPTH: 34.8"
WEIGHT: 1,100 lb
CAPACITY: 0.99 yd³ HEAPED

Bucket - 4-in-1 | BU4N182S

BU4N182S TLB 4N1_82_PO
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER
CYLINDERS: DUAL, 3" DIAMETER, DOUBLE ACTING CYLINDERS POWER THE CLAM
CUTTING EDGE: HEAVY-DUTY BUCKETS HAVE REPLACEABLE DOZER CUTTING EDGE AND REVERSIBLE FLOOR FRONT AND REAR CUTTING EDGE

Bucket - 4-in-1 | BU4N182S

BU4N182S TLB 4N1_CPL_82
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER
WIDTH: 82"
CAPACITY: 1 yd³

Bucket - 4-in-1 | BU4N184S

BU4N184S CDL 4N1_HD
EQUIPMENT:
WIDTH: 84.88"
HEIGHT: 28.5"
DEPTH: 36.19"
WEIGHT: 1,400 lb

Bucket - 4-in-1 | BU4N184S

BU4N184S SSL 4N1_HD
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER, COMPACT WHEEL LOADER
WIDTH: 84.75"
HEIGHT: 27.69"
LENGTH: 37.47"
CLAM LENGTH: 27"
BACKBLADE LENGTH: 11.52"
CLAM OPENING: 34.79"
PRESSURE: 3,000 psi
FORCE: 6,400 lb
WEIGHT: 975 lb
HEAPED CAPACITY: 23.4 ft³

Bucket - 4-in-1 | BU4N188S

BU4N188S TLB 4IN1_TC_88
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER
WIDTH: 88.58"
CAPACITY: 1m³

Bucket - 4-in-1 | BU4N188S

BU4N188S TLB 4N1_SLA_88
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER

Bucket - 4-in-1 | BU4N188T

BU4N188T TLB 4N1_SLA_88
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER
WIDTH: 88.58"
CAPACITY: 1m³

Bucket - 4-in-1 | BU4N190S

BU4N190S TLB 4N1_CPL_90
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER
WIDTH: 90"
HEIGHT: 36.41"
DEPTH: 34.8"
WEIGHT: 1,275 lb

Bucket - 4-in-1 | BU4N190S

BU4N190S TLB 4N1_SLA_90
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER
WIDTH: 90"
HEIGHT: 36.41"
DEPTH: 34.8"
WEIGHT: 1,275 lb

Bucket - 4-in-1 | BU4N193S

BU4N193S TLB 4N1_93_PO
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER
CYLINDERS: DUAL, 3" DIAMETER, DOUBLE ACTING CYLINDERS POWER THE CLAM
CUTTING EDGE: HEAVY-DUTY BUCKETS HAVE REPLACEABLE DOZER CUTTING EDGE AND REVERSIBLE FLOOR FRONT AND REAR CUTTING EDGE
WIDTH: 93"
CAPACITY: 1.2 yd³

Bucket - 4-in-1 | BU4N193S

BU4N193S TLB 4N1_CPL_93
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER
WIDTH: 93"
CAPACITY: 1.2 yd³

Bucket - 4-in-1 | BU4N194S

BU4N194S TLB 4IN1_TC_94
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER

Bucket - 4-in-1 | BU4N194T

BU4N194T TLB 4IN1_TC_94
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER

Bucket - 6-in-1 | BU6N188S

BU6N188S TLB 6N1_SLA_88
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER

Bucket - 6-in-1 | BU6N188S

BU6N188S TLB 6N1_SLA_88
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER

Bucket - 6-in-1 | BU6N188T

BU6N188T TLB 6N1_SLA_88
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER
