Brooms

Sweeps and scrapes mud in both directions while delivering efficient dust control, adjustable bristle performance, and easy maintenance.

FIND A DEALER

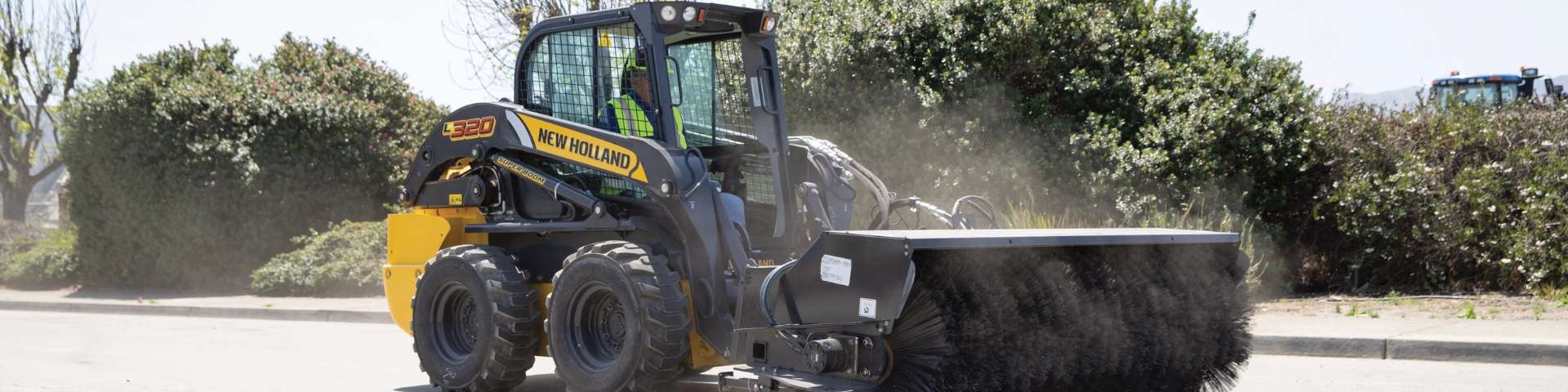

Skid steer loader sweeping street with broom attachment.

Available Models

Find the right attachment to meet the needs of your operation.

Angle Broom | AB72L

AB72L SSL AGLBRM_72
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER, SMALL ARTICULATED LOADER
MANUAL ANGLING: OPTIONAL HYDRAULIC ANGLE KIT (ORDERED SEPARATELY)
ANGLES (LEFT OR RIGHT): 30°
BRUSH DIAMETER: 32"
QUICK-CHANGE BRUSH: WITHOUT BREAKING HYDRAULIC LINES

Angle Broom | AB84L

AB84L SSL AGLBRM_84
EQUIPMENT: COMPACT TRACK LOADER AND SKID STEER LOADER
MANUAL ANGLING: OPTIONAL HYDRAULIC ANGLE KIT (ORDERED SEPARATELY)
ANGLES (LEFT OR RIGHT): 30°
BRUSH DIAMETER: 32"
QUICK CHANGE BRUSH: WITHOUT BREAKING HYDRAULIC LINES

Angle Broom | AB96DB

AB96DB TLB AGLBRM_96
EQUIPMENT: TRACTOR LOADER BACKHOE, TRACTOR LOADER
PARKING STANDS
ANGLES (LEFT OR RIGHT): 30°
BRUSH DIAMETER: 32"
BROOM HEAD: ADJUSTABLE
MOUNTING: INTEGRAL NOZZLE MOUNTING FOR WATER APPLICATION
BRUSH CORE: 50/50 POLY/WIRE
BOLT TOGETHER HOOD: SIMPLE, LESS COSTLY REPLACEMENT IF
DAMAGED
QUICK-CHANGE BRUSH: WITHOUT BREAKING HYDRAULIC LINES
MOTORS: DUAL HYDRAULIC MOTORS
CASTER WHEELS: 4.80-8 TIRES

Angle Broom | AB96W

AB96W CWL AGLBRM_96
EQUIPMENT: COMPACT WHEEL LOADER
PARKING STANDS
ANGLES (LEFT OR RIGHT): 30°
BRUSH DIAMETER: 32"
BROOM HEAD: ADJUSTABLE
MOUNTING: INTEGRAL NOZZLE MOUNTING FOR WATER APPLICATION
BRUSH CORE: 50/50 POLY/WIRE
BOLT TOGETHER HOOD: SIMPLE, LESS COSTLY REPLACEMENT, IF
DAMAGED
QUICK-CHANGE BRUSH: WITHOUT BREAKING HYDRAULIC LINES
MOTORS: DUAL HYDRAULIC MOTORS
CASTER WHEELS: PNEUMATIC 4.80–8 TIRES

Angle Broom | AB108W

AB108W CWL AGLBRM_108
EQUIPMENT: COMPACT WHEEL LOADER
PARKING STANDS
ANGLES (LEFT OR RIGHT): 30°
BRUSH DIAMETER: 32"
BROOM HEAD: ADJUSTABLE
MOUNTING: INTEGRAL NOZZLE MOUNTING FOR WATER APPLICATION
BRUSH CORE: 50/50 POLY/WIRE
BOLT TOGETHER HOOD: SIMPLE, LESS COSTLY REPLACEMENT, IF
DAMAGED
QUICK-CHANGE BRUSH: WITHOUT BREAKING HYDRAULIC LINES
MOTORS: DUAL HYDRAULIC MOTORS
CASTER WHEELS: PNEUMATIC 4.80–8 TIRES

Angle Broom | AB144H

AB144H CWL AGLBRM_120
EQUIPMENT: COMPACT WHEEL LOADER
HEIGHT: 53.2"
WIDTH: 167.7"
LENGTH: 97.9"
ANGLES: 30°
WORKING WIDTH @ 0°: 144"
WORKING WIDTH @ 30°: 129"
MAX PRESSURE: 3,000 psi
WEIGHT: 2,365 lb

Angle Broom | AB144S

AB144S CWL AGLBRM_120
EQUIPMENT: COMPACT WHEEL LOADER
HEIGHT: 53.2"
WIDTH: 143.7"
LENGTH: 97.9"
ANGLES: 30°
WORKING WIDTH @ 0°: 120"
WORKING WIDTH @ 30°: 104"
MAX PRESSURE: 3,000 psi
WEIGHT: 2,240 lb

Dust Control | H2DBT

H2DBT SSL H20-TANK_D
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
DRY WEIGHT: 430 lb
OPERATING WEIGHT (FULL TANK): 765 lb
TANK CAPACITY: 40 gal (20 gal/tank)
TIP FLOW: 0.27 gpm
NUMBER OF TIPS: 4
SPRAY TIME FROM FULL: 40 min
MAX CURRENT DRAW: 6 amps

Dust Control | H2RMT

H2RMT SSL H20-TANK_S
EQUIPMENT: SKID STEER LOADER COMPACT TRACK LOADER
CAPACITY: 30 gal
TANK: ROOF-MOUNTED, LOW PROFILE
INCLUDES: MOUNTING BRACKETS, PUMP, TUBING TO END OF LOADER
BOOM, WIRING HARNESS, CONTROL BOX

Pickup Broom | PB72

PB72 SSL PUBRM_72
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
BRUSH DIAMETER: 26"
BRUSH: POLY/WIRE COMBINATION BRUSH
BI-DIRECTIONAL MOTOR: FORWARD OR REVERSE SWEEPING
HIGH-CAPACITY SINGLE DRIVE MOTOR: 12–23 GPM SYSTEMS
QUICK-CHANGE BRUSH: WITHOUT BREAKING HYDRAULIC LINES
DRIVE MOTOR: CAN BE REMOVED FOR BRUSH CHANGE WITHOUT TOOLS
TOOLS: NO TOOLS REQUIRED FOR BRUSH PATTERN ADJUSTMENT
“VOLUMIZING” FEATURE: FOR INCREASED BUCKET CAPACITY
WHEEL: HEAVY-DUTY CASTER WHEEL AND WHEEL MOUNT
SPRINKLER: INTEGRAL SPRINKLER NOZZLE MOUNTS

Pickup Broom | PB84

PB84 SSL PUBRM_84
EQUIPMENT: SKID STEER LOADER, COMPACT TRACK LOADER
BRUSH DIAMETER: 26"
BRUSH: POLY/WIRE COMBINATION BRUSH
BI-DIRECTIONAL MOTOR: FORWARD OR REVERSE SWEEPING
HIGH-CAPACITY SINGLE DRIVE MOTOR: 12–23 GPM SYSTEMS
QUICK-CHANGE BRUSH: WITHOUT BREAKING HYDRAULIC LINES
DRIVE MOTOR: CAN BE REMOVED FOR BRUSH CHANGE WITHOUT TOOLS
TOOLS: NO TOOLS REQUIRED FOR BRUSH PATTERN ADJUSTMENT
“VOLUMIZING” FEATURE: FOR INCREASED BUCKET CAPACITY
WHEEL: HEAVY-DUTY CASTER WHEEL AND WHEEL MOUNT
SPRINKLER: INTEGRAL SPRINKLER NOZZLE MOUNTS

Pickup Broom | PU48

PU48 CII PUBRM_48
EQUIPMENT: MINI TRACK LOADER
WEIGHT: 450 lb
WORKING WIDTH: 45"
WAFER DIAMETER: 24"
WAFER QUANTITY: 23
WATER MATERIAL: POLY/STEEL
RATED FLOW: 7–17 gpm

Pickup Broom | PU48S

PU48S SAL PUBRM_48
EQUIPMENT: SMALL ARTICULATED LOADER
WEIGHT: 510 lb
WORKING WIDTH: 45"
WAFER DIAMETER: 24"
WAFER QUANTITY: 23
WAFER MATERIAL: POLY/STEEL
BUTTING EDGE: 1/2" × 4" BOLT-ON
FLOW: 7–17 gpm
